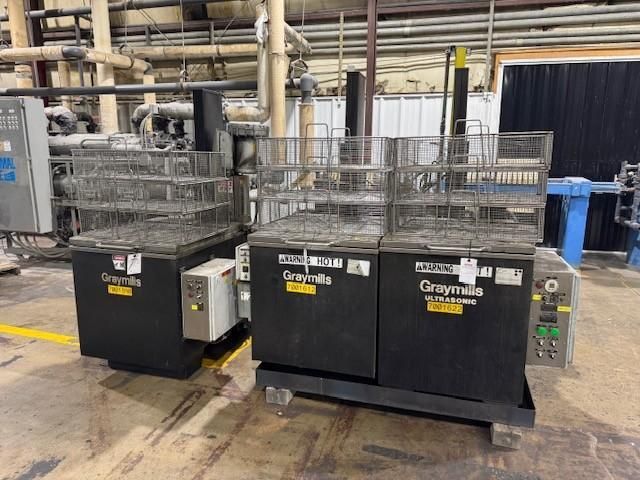

Graymills A-42475V

Pump 3 cylinder axial diaphragm type with brass head
Timer Electronic timer with push button start/stop
Heater Electric stainless steel plug, Incaloy elements
Temperature control Thermostat control in immersion heater box
Primary filter 100 micron felt filter
Secondary filter High pressure cartridge type 5 HP (1) cartridge, 10 HP (2) cartridges
Spray chamber & reservoir tank 304 stainless steel
Weld-in fittings Carbon steel
Plumbing Brass, malleable or plated fittings
Wash water Stainless steel nozzles
Turntable Carbon steel
Structure Carbon steel
Portable All machines stationary with four adjustable legs
Roller table X in x X in
Electrical controls 115 volt fused
Electrical enclosure NEMA 12
Maximum temperature 160 °F
Basket material Vinyl dip coated over carbon steel, 3/4 in x #9 flattened expanded metal
Turntable rotation 6 RPM, belt driven by gear motor
Load capacity 500 lbs
Machine dimensions 44 in x 89 in x 134 in tall
