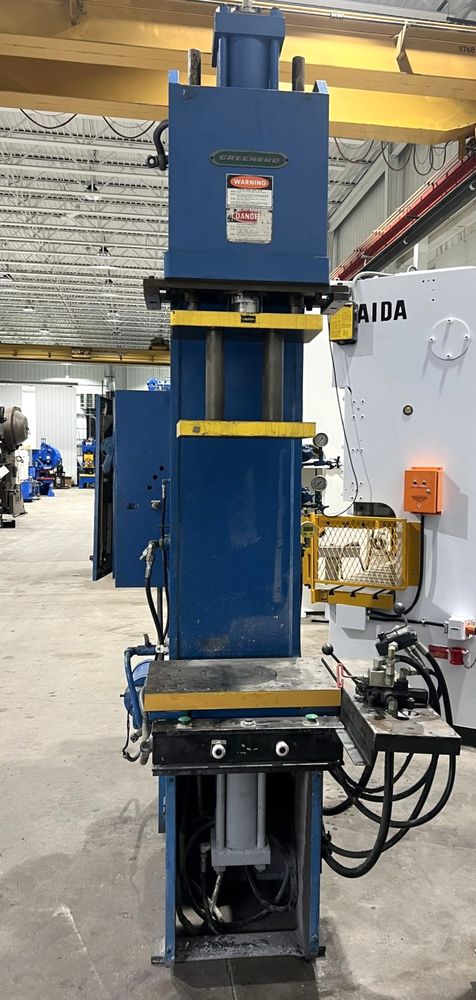

Greenerd HC40-60C12 40 ton

Press force 40 ton
Max. stroke 24 in
Max. daylight 48 in
Bed area 25.75 × 16 in
Bolster plate 25.75 × 16 × 2.25 in
Ram area 20 × 12 × 2 in
Additional ram plate 20 × 12 × 2 in
Riser height 12.125 in
Post diameter 2.5 in
Throat depth 12.25 in
Throat depth (lip) 12.625 in
Ram rod diameter 4.5 in
Control Allen-Bradley Bulletin 700 relay logic
Hydraulic reservoir 100 gallon
Motor power 20 HP
Motor voltage 230/460 V
Motor frequency 3 phase 60 Hz
Motor current 52 / 26 A
Dimensions 58 × 106 × 138 in
Weight 12000 lbs
Transfer cylinder stroke 12–14 in
