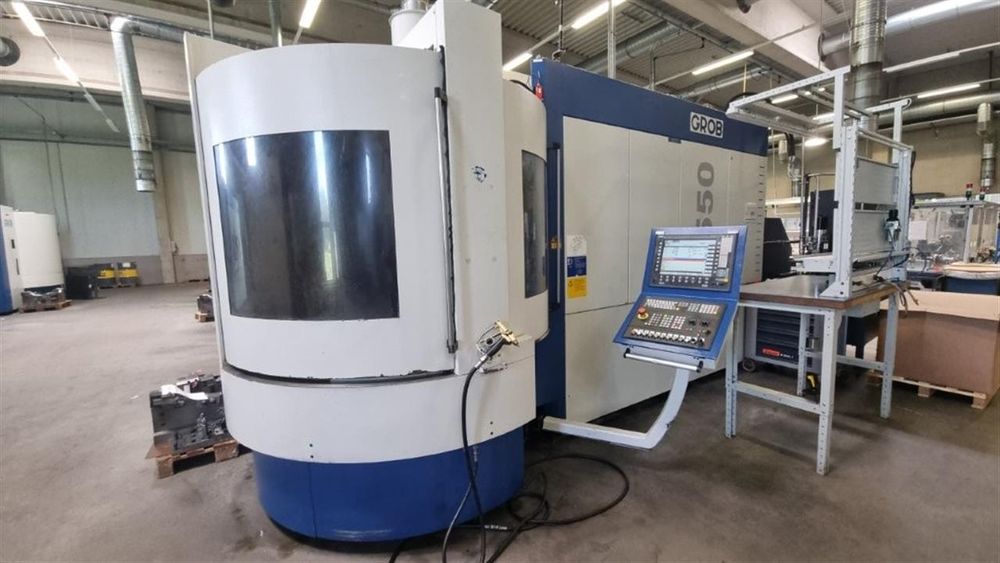

Grob G550 5 Axis

GROB G550
2014

X travel: 800 mm
Y travel: 950 mm
Z travel: 1020 mm
Control: Sinumerik 840D sl MDynamics Operate
Spindle speed: 10,000 rpm
Spindle power: 26/20 kW
Max spindle torque: 340/262 Nm
Tool taper: HSK-A100
Tool changer capacity: 120 (2x60) positions
Pallet changer: 2x 630 x 630 mm
Table load capacity: 800 kg
Total power requirement: not specified kVA
Machine weight: approx. 20 t
Machine dimensions: approx. 3.3 x 6.15 x 3.2 m
5-axis simultaneous horizontal machining
Controlled swivel-rotary table (A/B-axis)
Twin pallet changer
6 hydraulic couplings for pallet fixture clamping
Rotary joint in A and B-axis
Special hydraulic pump for fixture
Coolant through spindle (10–80 bar)
Proportional valve channel for 10–200 bar pressure
Electromechanical tool-length measuring device
BLUM laser tool measurement
Tool coding
Chip conveyor
3D touch probe M&H
Electronic handwheel Siemens HT8
Coolant gun
Coolant shower
Air gun
Oil skimmer
Automatic door
Remote diagnosis
Optional KOMET U-axis system: UAS 160-HSK100-E-Z50-1, 50 mm travel
Optional KOMET U-axis system: UAS 160-HSK100-E-Z-32-1, 32 mm travel
