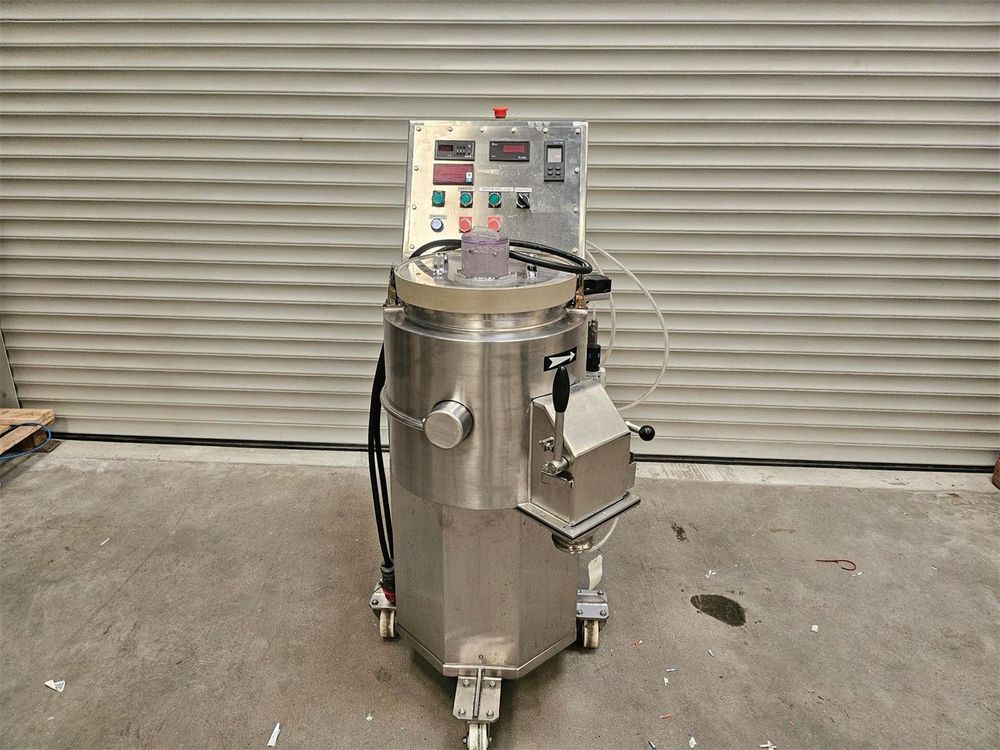

Guedu 20 NO/PA Mixer

Weight : 200 kg
Dimensions : (L x W x H) 1.10 x 0.70 x 1.40 M

Drying mixer for powders.
Total tank volume: 40 liters.
Usable volume: 30 liters.

Equipped with:
- Plexiglas lid with two-point locking mechanism and a safety device to stop the mixer if opened.
- Loading hatch with a protective grille for inserting the product, hatch diameter: 80 mm.
- 316 L stainless steel double-jacketed tank measuring 300 x 400 mm.
- Electric heating of the double jacket.
- Heating temperature adjustable on the control panel. Temperature sensor in the tank with temperature display on the control panel.
- Mechanically variable speed agitator at the bottom of the tank.
- Mixer motor power: 1.5 kW.
- Rotation speed display in rpm on the control panel. Tank bottom seal supplied with compressed air at a pressure adjustable on a pressure gauge.
- Mixer operating time programmer on the control panel.
- Tank drain on the side, 80 mm hole diameter.

Mounted on a stainless steel frame with casters.
