Gunze LS-1120

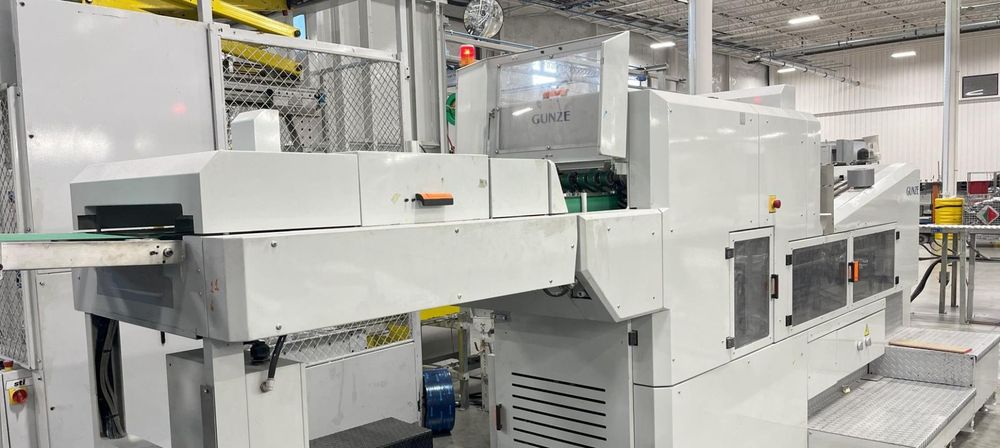

Gunze LS-1120 fully automatic horizontal stacker bundler
Product size: Width min 200 mm, max 520 mm, lenght min 100 mm, max 320 mm
Product thickness: min 0,2 mm, max 4,5 mm
Stream thickness: max 25 mm (compressed)
Shingle distance: 40 mm at normal max 80 mm
Edge offset: +/- 3 mm
Fold orientation: Spine leading (inversed shingle stream)
Page count: min 8 page, max 96 page
Paper wight: min 30 g/m2, max 140 g/m2
Bundle lenght: min 600 mm, max 1200 mm
Endboard: same as product size, Thickness min 9,5 mm, max 12,5 mm
Operating speed: 24 sec. per bundle
Belt speed: min 7,5 m/min, max 50 m/min
Straping head: Mosca MK-43
Strap material: 12 mm width poly propylene
