1/1

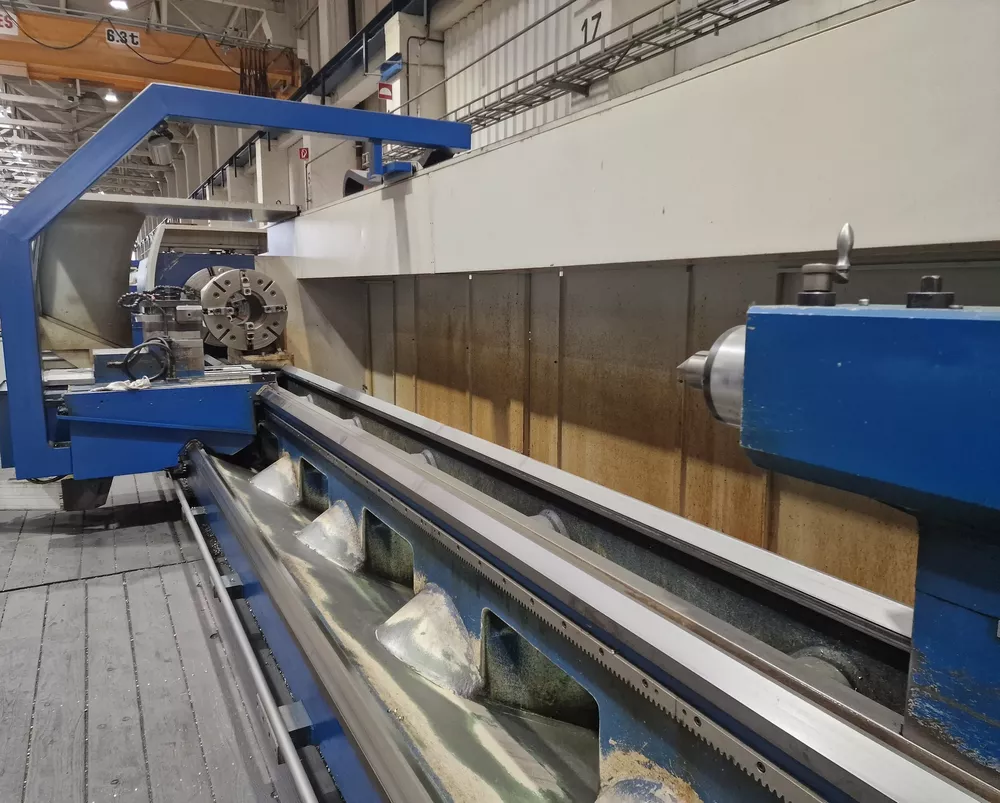

Gurutzpe CNC CONTROL 800 RPM A1200 4G 2 Axis
Ref :
2734735-3-MT
Condition :
Used
Manufacturer :
Gurutzpe
Controller :
CNC CONTROL
Spindle Speed :
800 RPM
Model :
A1200 4G
Nb Of Axis :
2 Axis
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centers: 11,000 mm
Center height: 450 mm
Cross slide travel: 700 mm
Maximum workpiece weight: 12,000 kg
Spindle power: 51/56 kW
Spindle speed range: 0–166 / 0–800 RPM
Number of speed ranges: 2
Spindle nose: DIN 55026 – A11
Spindle bore: 150 mm
Longitudinal feed rate (2 carriages): 8 m/min
Cross feed rate (2 carriages): 8 m/min
2 manual tool holders, size 300 – 4 positions
Plate clamping diameter: 700 mm
Chip conveyor with coolant tank
3 closed steady rests
2 open steady rests (type C)
1 steady rest with clamping plate Ø 600 mm
