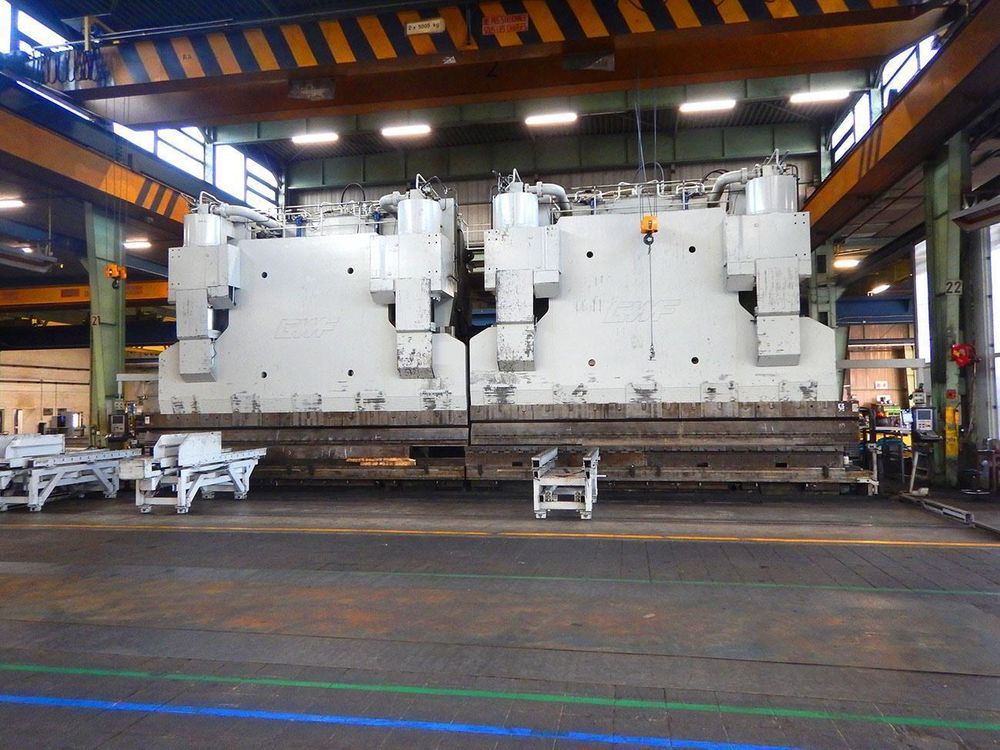

GWF Heavy Duty 4000 ton x 16 200 mm CNC 4000 ton press capacity
Ref :
2782920-3-CP
Condition :
Used
Manufacturer :
GWF
Model :
Heavy Duty 4000 ton x 16 200 mm CNC
Pressure :
4000 ton press capacity
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Bending length: 16,200 mm
Backgauge: CNC
Control: 2D Touch
Passage between uprights: 4600 mm (2x)
Max stroke: 1000 mm
Max distance between table and ram: 1650 mm
Throat depth: 1250 mm
Table width: 650 mm
Locking speed: 70 mm/sec
Working speed: 4–7.5 mm/sec
Returning speed: 75 mm/sec
Electric motor power: 75 kW (2x)
Power requirement: 380V
Length: 7100 mm
Depth: 5000 mm
Height: 6350 mm (above floor)
Weight: 500 ton (2x 250 ton)
12 CNC axes: Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / R1 / R2 / R3 / R4 / X5
Tandem pressbrake configuration: 2 x 2000 tons GWF
Maximum bending example: 35 mm normal steel on 16 m length
