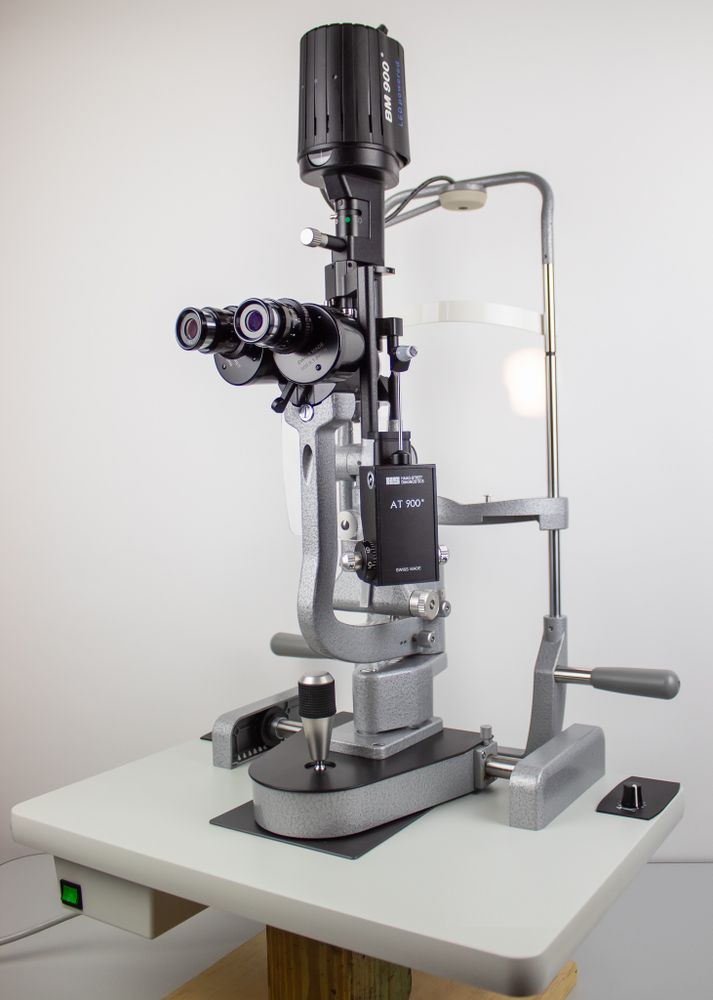

Haag Streit BM 900 LED Slit Lamp

Illumination System
The heart of the Haag-Streit slit lamp (also on the BQ 900 and BP 900 models),
the illumination system has the brightest (600,000 Lux) illumination available in
a slit lamp, providing a tilting, rotating slit of up to 8 mm in length and width.
Tilting is extremely important to good posterior segment observation.
All filter and slit controls are conveniently situated for ease of use and,
as with the cross-slide mechanism, have a silky smooth, effortless movement.
The slit mechanism, one of those “differences inside”, is a masterpiece of
engineering in itself, affording faultless precision in shape and movement.

Excellent optics
The quality of the optical system determines the results of whatever application a
slit lamp is used for. All Haag-Streit slit lamps are equipped with
elaborated microscopes, manufactured for highest quality requirements.
The result is a superb view, allowing accurate diagnostics,
safe patient treatment and stunning imaging results.

Superior Swiss Precision Mechanics
Since its foundation more than 150 years ago, Haag-Streit has stood for
high-precision mechanics. This experience, combined with
outstanding Swiss engineering and the use of high grade materials,
ensures perfect mechanics in all our slit lamps, which can last for decades.
Perfection in design, materials and construction allow all
movements to be made smoothly and effortlessly without any wrist or finger strain –
and to continue doing so for the very long lifetime of a Haag-Streit slit lamp.

APPLANATION TONOMETER
The original Goldmann tonometer – it is fast and reproducible,
Goldmann applanation tonometry has been the gold standard of tonometry for
many decades. It is based on the Goldmann principle – tried and
tested during more than 50 years of usage with millions of patients.
Thanks to its accuracy and repeatability, it is still considered the
gold standard of IOP measurements today.

Specifications:
Illumination Light-Source: LED
Slit Width: 0 – 8 mm continuous
Slit Length: 1 – 8 mm continuous and fixed apertures
Illumination Field Diameter: ø 8, 5, 3, 2, 1, 0.2 mm, test mark with fixation star
Slit Image Rotatability: ± 90°
Stereo Angle: 13°
Swiveling of the Slit Illumination: Horizontal ± 90°, Vertical 0 – 20°
Filters: Blue, red–free (green) and grey (10 %)
Total Magnification: 10× and 16× (25× and 40× with optional eyepieces)
Range of Adjusting Eyepieces: +8 to –8 diopters
Inter Pupillary Distance: 54 – 94 mm

This Haag-Streit BM 900 LED Slit Lamp comes equipped with:
6 Month Warranty
AT 900 Tonometer
Dust Cover
