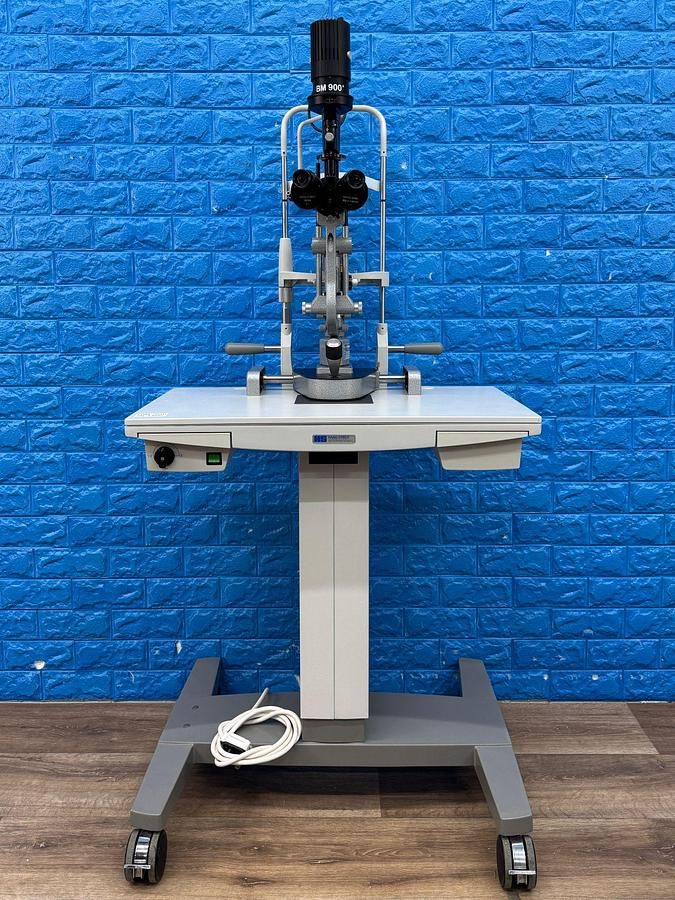

Haag Streit BM 900 Slit Lamp

In good working condition.

Includes:
- Haag Strait Slit Lamp BM 900 REF: 7200013 YOM: 2010

The Haag-Streit BM 900 Slit Lamp (often associated with
the reference series REF: 7200013) is a legendary ophthalmic instrument
known for its Kepler-type microscopeand Swiss precision engineering.
It is widely regarded as the "gold standard" for
routine eye examinations due to its reliability and optical clarity.

Technical Specifications Overview
The following technical details are derived from official Haag-Streit documentation:
- Microscope SystemType: Kepler-type stereo microscope with a 13° stereo angle.
- Magnification: Standard 10× and 16×; expandable to 25× and 40× with optional eyepieces.
- Eyepieces: Standard 10× (optional 25×) with a diopter adjustment range of +8 to –8.
- Interpupillary Distance: Adjustable from 54 mm to 94 mm.
- Illumination & Slit ControlLight Source: High-intensity LED (replaces older tungsten systems for 60% energy savings and longer life).
- Slit Width: Continuously adjustable from 0 to 8 mm.
- Slit Length: Continuously adjustable from 1 to 8 mm, including fixed apertures.
- Illumination Field: Diameters of ø 8, 5, 3, 2, 1, and 0.2 mm, featuring a test mark with a fixation star.
- Filters: Includes Blue, Red-free (Green), and Grey (10%) filters.
- Mechanical PerformanceOperation: Single-handed, 3-dimensional control via a high-precision lever.
- Movement Range: 100 mm (length), 100 mm (side), and 30 mm (height) for precise spatial adjustment.
- Durability: Designed for intensive daily practice, with some units reported to last for decades.

Key Features for Practitioners
- Fatigue-Free Viewing: Large apertures and superior optics reduce eye strain during long clinical days.
- Goldmann Tonometry Integration: Specifically designed to work with the AT 900 tonometer, the industry standard for IOP measurements.
- Versatile Accessories: Compatible with inclined eyepiece adapters and various instrument tables for ergonomic, wheelchair-accessible workflows.

Physical & Electrical Data
- Dimensions: 290 mm × 332 mm × 700 mm.
- Net Weight: Approximately 11.4 kg (excluding power supply and headrest).
- Power Supply: 100 – 240 V mains voltage, 50 – 60 Hz.

The Haag-Strait’s Slit Lamp BM 900, model REF: 7200013 from the year 2010,
is a reliable ophthalmology instrument. Known for its precision and high-quality optics,
it ensures accurate eye examinations. This used model is still in good condition,
contributing to effective diagnostics and patient comfort.

The slit lamp features superior illumination and magnification, suitable for detailed examination
of the anterior and posterior segments of the eye. Its robust build makes it a durable choice
for continuous use. This model is a trusted tool for ophthalmologists needing accuracy
and efficiency in their practice.

Ideal for any ophthalmology clinic, this Haag-Streits Slit Lamp offers professional-grade performance
at a reasonable price. It remains a valuable addition to your diagnostic equipment,
ensuring thorough and precise patient evaluations.
