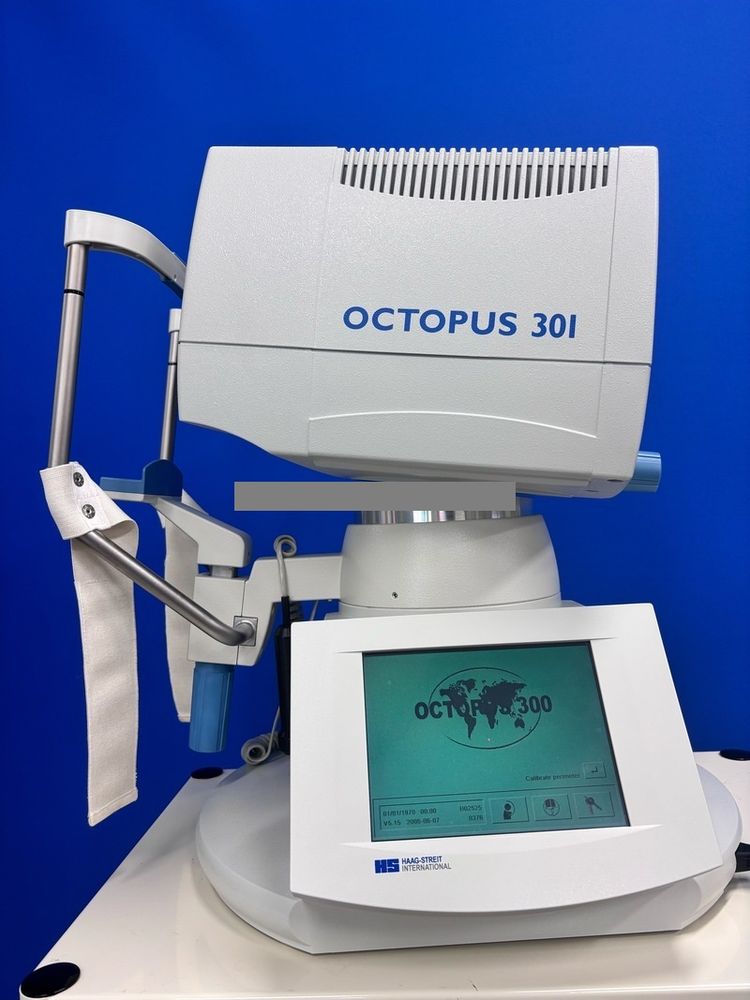

Haag Streit Octopus 301

Octopus 301 Is a direct projection perimeter for examinations of
the central visual field (30degree projection).
It is a stand-alone system with the examination and
control units integrated into the instrument.
Color LCD input screen
Ongoing counting of examinations
Infrared sensitive eye camera and video display
Perimeter automatically adjust for fixation loss
Continuous average pupil size measurement
Examination programs G1,32, M2, ST, and LVC
Test Strategies – normal 4-2-1db, low vision, Dynamic and 2LT(Qualitative 3-zone) strategy
Stimulus sizes- Goldman III and V
Stimulus Intensity – 0-4800 asb
Background illumination – 31.4 / 314 asb

Specification & Options
Stimulus maximum intensity 5000 asb
Stimulus parameter Goldmann III, V
Perimeter type Static computer
Stimulus duration, msec 0.1, 0.2
Illumination level 31.4 asb
Wavelength, nm 590
Weight (kg) 22
Overall dimensions, cm 45x53x56
