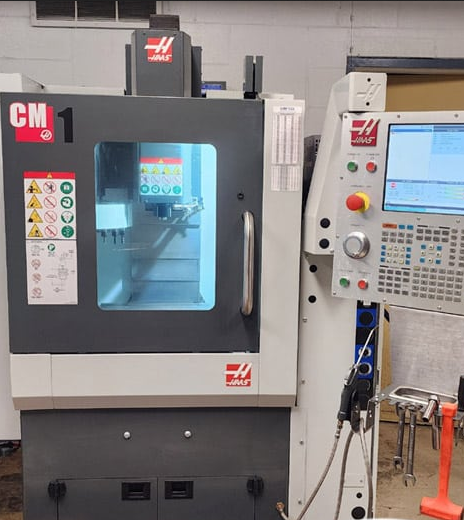

Haas CM-1 3 Axis

X axis travel: 12.0"
Y axis travel: 10.0"
Z axis travel: 12.0"
Spindle nose to table (max): 15.3"
Spindle nose to table (min): 3.3"
Control: Haas CNC Control
Max spindle speed: 30,000 RPM
Spindle power: 5.0 HP
Spindle torque: 8 ft-lbf @ 3,000 RPM
Spindle taper: ISO 20
Max cutting feedrate: 500 IPM
Rapid traverse (X): 757 IPM
Rapid traverse (Y): 757 IPM
Rapid traverse (Z): 757 IPM
Table length: 20.0"
Table width: 10.0"
T-slot width: 0.375"
T-slot center distance: 3.38"
Number of standard T-slots: 3
Max table load: 150 lbs
Tool changer type: Carousel
Tool changer capacity: 20
Max tool diameter (full): 2.3"
Max tool weight: 5 lbs
Tool-to-tool time (avg): 3.2 s
Machine weight: 2,100 lbs
Machine dimensions (shipping): 79" x 58" x 86"
HRT-100 rotary table
Macros
Rotation and scaling
Rigid tapping
High speed machining (HSM)
Media display
Max memory: 1 GB
Wireless networking
Compensation tables
