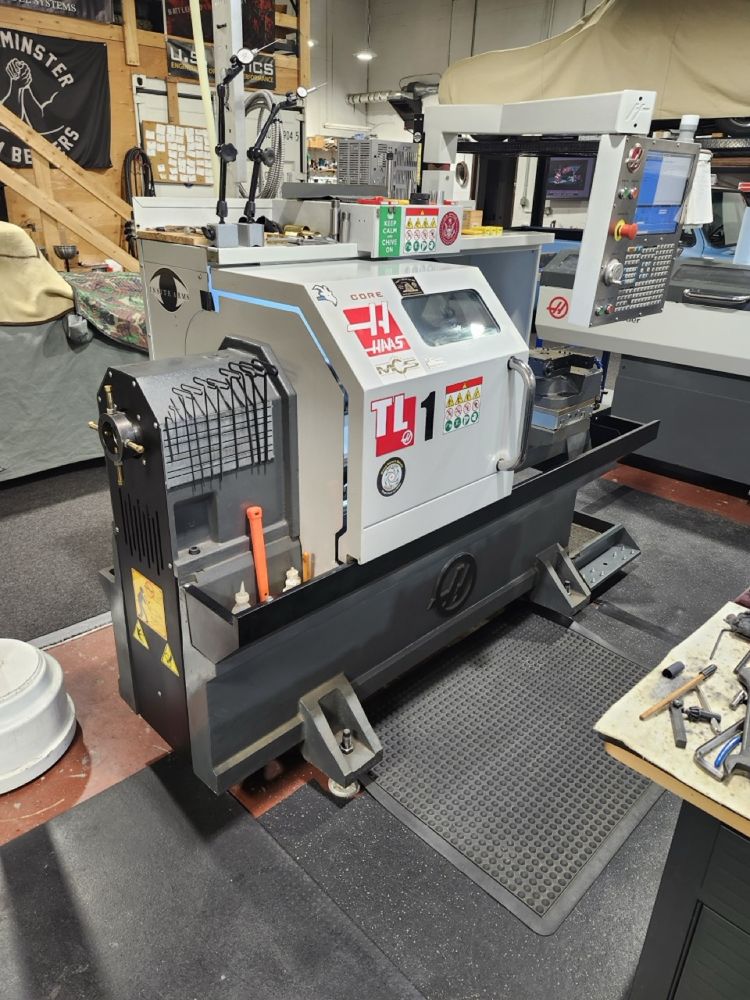

Haas CNC CONTROL 1800 RPM TL-1 2 Axis

Ref : 2737606-3-CP

Condition : Used

Manufacturer : Haas

Controller : CNC CONTROL

Spindle Speed : 1800 RPM

Model : TL-1

Nb Of Axis : 2 Axis

Year(s) : 2017

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-axis travel: 8"
Z-axis travel: 30"
Bar capacity: 2"
Swing over front: 20"
Swing over cross-slide: 11"
Max cutting diameter: 16"
Max cutting length: 30"
Between centers: 30"
Spindle nose: A2-5
Spindle bore: 2.3"
Spindle power: 10 hp
Spindle speed: 1800 RPM
Rapid traverse (X/Z): 450 IPM
Turret: 4-station automatic tool
Manual tailstock
8" 3-jaw chuck
Air chuck
10" 4-jaw independent chuck
Quick-change tool post
Shipping dimensions: 89" × 66.5" × 83"
Weight: 4200 lbs
Electrical requirements: 220 V, three-phase, 60 Hz
