Haas CNC CONTROL 3,400 RPM ST-30Y 3 Axis

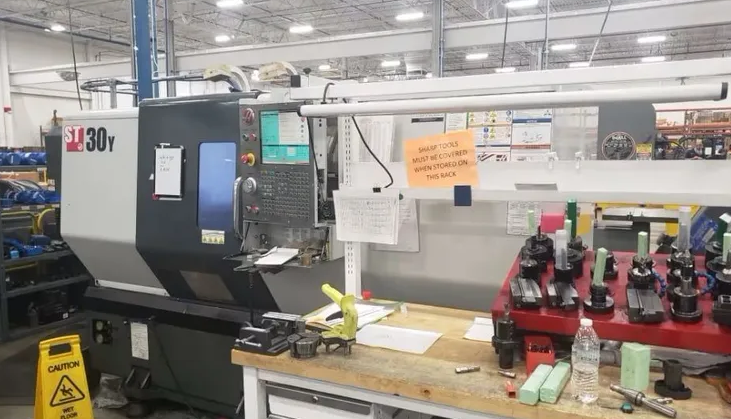

HAAS ST-30Y
2011

swing 31.75"
machining length 32.5"
chuck size 10"
bar capacity 3"
power 30 hp
max rpm 3,400 RPM
turning diameter 18"
tailstock yes
live tooling yes
sub spindle no
x-axis travel 9.4"
y-axis travel 4"
z-axis travel 32.5"
max part swing 21"
max cutting diameter 13.75"
max cutting length 32.5"
spindle nose A2-6
spindle motor 30 hp
spindle max speed 3,400 RPM
spindle bore 3.5"
spindle bar capacity 3"
c-axis positioning 0.01 degree
c-axis max speed 60 RPM
live tooling max speed 4,000 RPM
footprint without conveyor 151" x 70" x 79"
approximate weight 11,400 lbs
control Haas CNC
12-station VDI turret
y-axis milling
y-axis drilling
y-axis tapping
collet chuck
10" chuck
tool setter
miscellaneous live tooling
miscellaneous turning tooling
