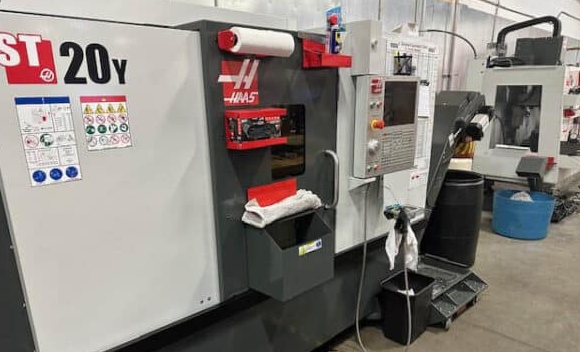

Haas CNC CONTROL 4000 rpm ST-20Y 2 Axis

X Axis travel 8.4”
Y Axis travel ±2.0”
Z Axis travel 22.5”
Bar capacity 2.50”
Max part swing 21.0”
Max cutting diameter with BMT65 turret 11.75”
Max cutting length 22.5”
Spindle nose A2-6
Spindle bore 3.50”
Spindle max speed 4000 rpm
Spindle max rating 20.0 hp
Number of tools 12 stations
Haas CNC control
Visual part programming system
Standard program memory 1 GB
User definable macros
Auto door
BMT65 turret
8.3” hydraulic chuck, A2-6
Early power failure detection module
Ethernet interface
HaasConnect remote monitoring
HaasDrop
4000 RPM live tooling with C-axis, 12 station
Media display M-Code
Rigid tapping
Spindle orientation
Wifi connection for the Haas control
Automatic tool presetter
Belt-type chip conveyor
Parts catcher
Spindle liner kit, 2.5” max diameter
Haas Bar Feeder V2
No tailstock
