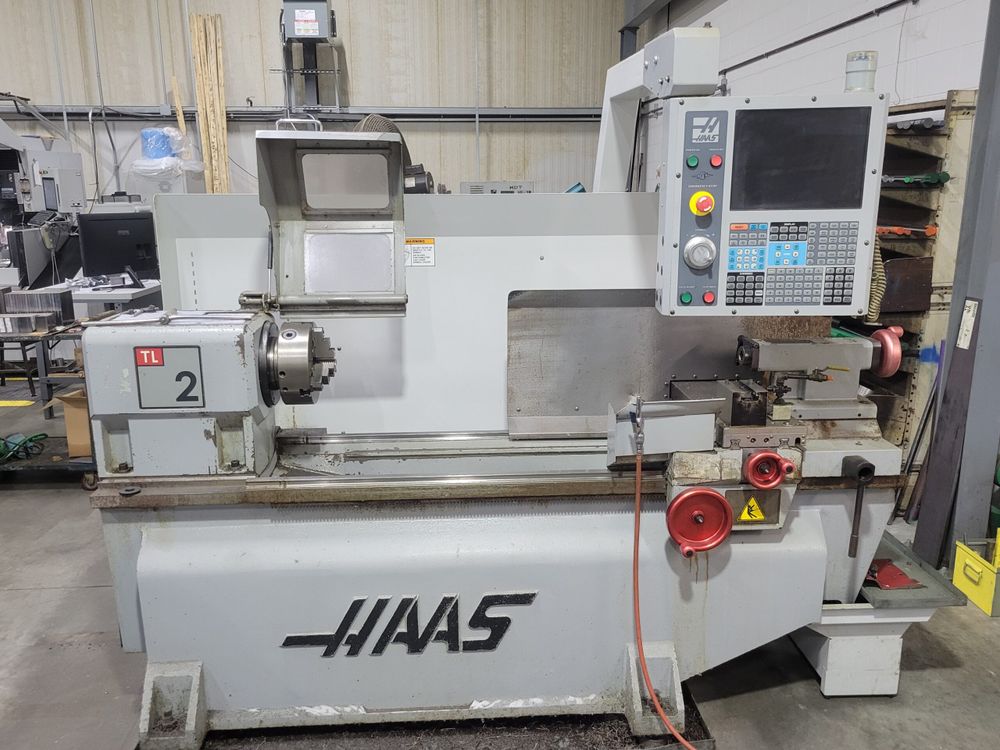

Haas CNC (Haas) 1800 rpm TL-2 2 Axis

HAAS TL-2
2007

Swing over open front apron: 20″
Swing over cross slide: 11″
Maximum cutting diameter with tool post: 16″
Maximum cutting length with tool post: 48″
Distance between centers: 48″
Chuck size: 8″
Bar capacity: 2.3″
Number of axes: 2
Spindle speed: 1800 rpm
Spindle nose: A2-5
Spindle motor power: 10 hp
Motor type: Direct speed, belt drive
X axis travel: 8″
Z axis travel: 48″
Rapid feedrate X axis: 450 IPM
Rapid feedrate Z axis: 450 IPM
Tailstock: Yes
Live tooling: No
Sub spindle: No
Control: CNC (Haas)
Machine dimensions: 110″ x 69″ x 83″
Machine weight: 4480 lbs
