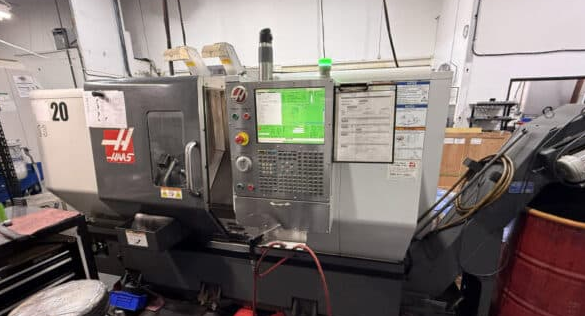

Haas Control Haas CNC 4000 rpm ST-20 2 Axis
Ref :
2750303-3
Condition :
Used
Manufacturer :
Haas
Controller :
Control Haas CNC
Spindle Speed :
4000 rpm
Model :
ST-20
Nb Of Axis :
2 Axis
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Tool presetter system
Tailstock
Chip conveyor
Bar capacity 2.0"
Swing over front apron 31.75"
Swing over cross slide 20.75"
Swing over tailstock 23.0"
Max cutting diameter 15.0"
Max cutting length 21.0"
X axis travel 9.3"
Z axis travel 21.0"
Rapids on X 945 in/min
Rapids on Z 945 in/min
Max thrust X 4100 lb
Max thrust Z 5100 lb
Spindle power 20 hp
Spindle speed 4000 rpm
Spindle torque 150 ft-lb @ 500 rpm
Spindle nose A2-6
Spindle bore 3.50"
Chuck 8.3"
Turret 12 stations
