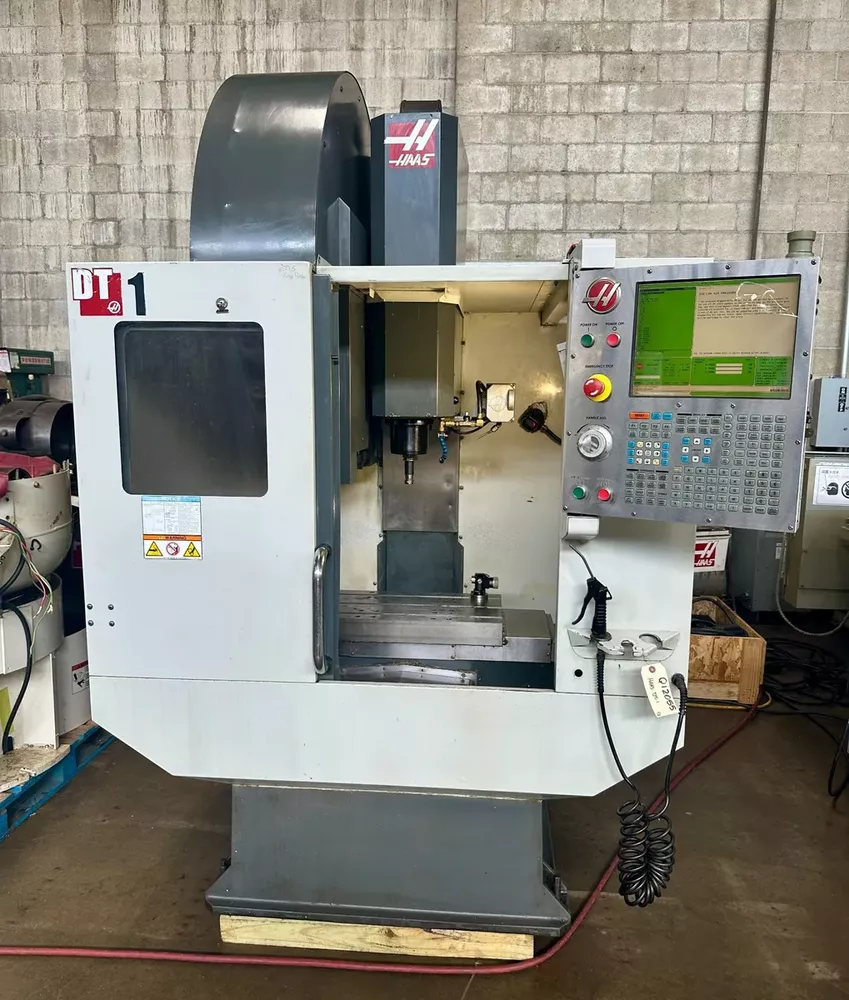

Haas DT-1 3 Axis

X-axis travel: 20"
Y-axis travel: 16"
Z-axis travel: 15.5"

CNC control: Haas CNC
Number of axes: 3
Haas collet closer
Part probe
Tool probe
Programmable coolant nozzle
Through spindle coolant
Double chip augers
Coolant system
Coolant pumps
Auxiliary coolant filter

Maximum table load: 250 lb
Maximum clearance table to spindle nose: 21.5"
Minimum clearance table to spindle nose: 6"

Spindle speed: up to 15,000 rpm
Spindle speed for tapping: 5,000 rpm
Spindle motor power: 15 hp
Spindle taper: BT30
Spindle torque: 46 ft-lbs @ 1700 rpm

Rapid traverse (X/Y/Z): 2,400 in/min

Automatic tool changer capacity: 21
Automatic tool changer type: Side-mount
Tool change time: 0.8 sec

Table size: 26" x 15"
T-slot width: 0.625"
T-slot center distance: 4.92"
Number of T-slots: 3

Power requirement: 195–260/3/60
Machine dimensions: 68" x 100" x 103"
Machine weight: 4,200 lbs
