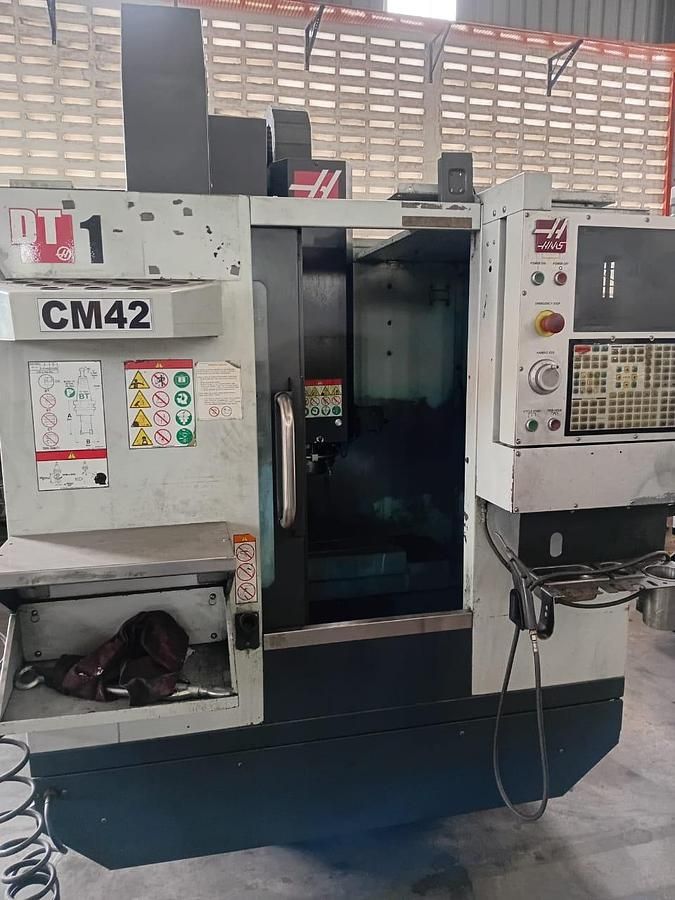

Haas DT-1 3 Axis

X-Axis Travel: 508 mm
Y-Axis Travel: 406 mm
Z-Axis Travel: 394 mm
Rapid Traverse (X/Y/Z): 61 m/min
Maximum Cutting Feedrate: 30.5 m/min
Control Voltage: 440 V
Phase: 3 Phase
Frequency: 50/60 Hz
Drive System: Inline Direct-Drive
Bearing Lubrication: Air / Oil Injection
Cooling System: Air Cooled
Minimum Air Pressure: 5.5 bar
Air Hose Size: 3/8 in
Table Size: 660 × 381 mm
T-Slot Width: 15.90 – 16.00 mm
T-Slot Center Distance: 125 mm
Number of T-Slots: 3
Spindle Power: 11.2 kW
Spindle Speed: 10,000 RPM
Spindle Taper: BT30
Maximum Tapping Speed: 5,000 RPM
Tool Changer Type: SMTC
Tool Capacity: 20 + 1
Maximum Tool Diameter: 51 mm
Maximum Tool Length: 178 mm
Maximum Tool Weight: 2.5 kg
Tool-to-Tool Time: 1.75 sec
Chip-to-Chip Time: 2.00 sec
Maximum Thrust X-Axis: 11,343 N
Maximum Thrust Y-Axis: 11,343 N
Maximum Thrust Z-Axis: 18,683 N
Coolant Tank Capacity: 208 L
Machine Weight: 2,336 kg
