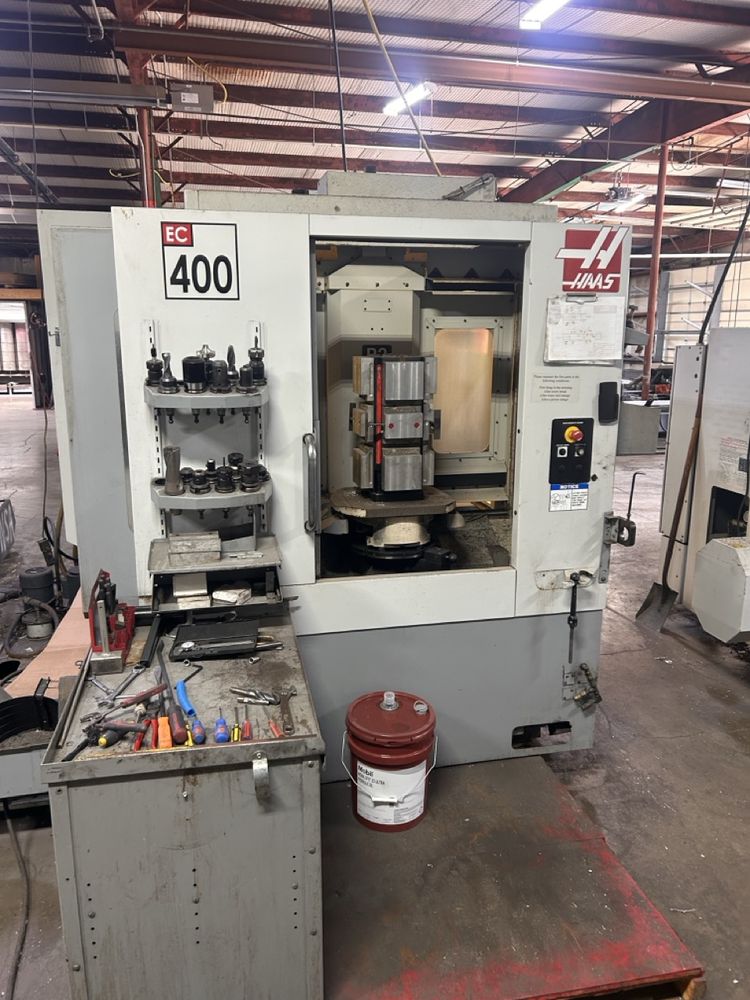

Haas EC-400 4 Axis

HAAS EC-400
2006

X-Axis Travels: 20"
Y-Axis Travels: 20"
Z-Axis Travels: 20"
B-Axis (full 4th): 0.001
Pallet Size: 15.75" x 15.75"
Pallet Change Time: 15 seconds
Max. Weight on Pallet: 880 lbs
Max. Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Taper: CAT 40
Rapid Traverse: 1,000 IPM
Max. Tool Diameter: 5"
Max. Tool Length: 12"
Max. Tool Weight: 12 lbs
Approx. Dimensions: 150" x 102" x 95"
Approx. Weight: 20,000 lbs

Through Spindle Coolant
70 Tool SMTC
Tombstone with Vises
