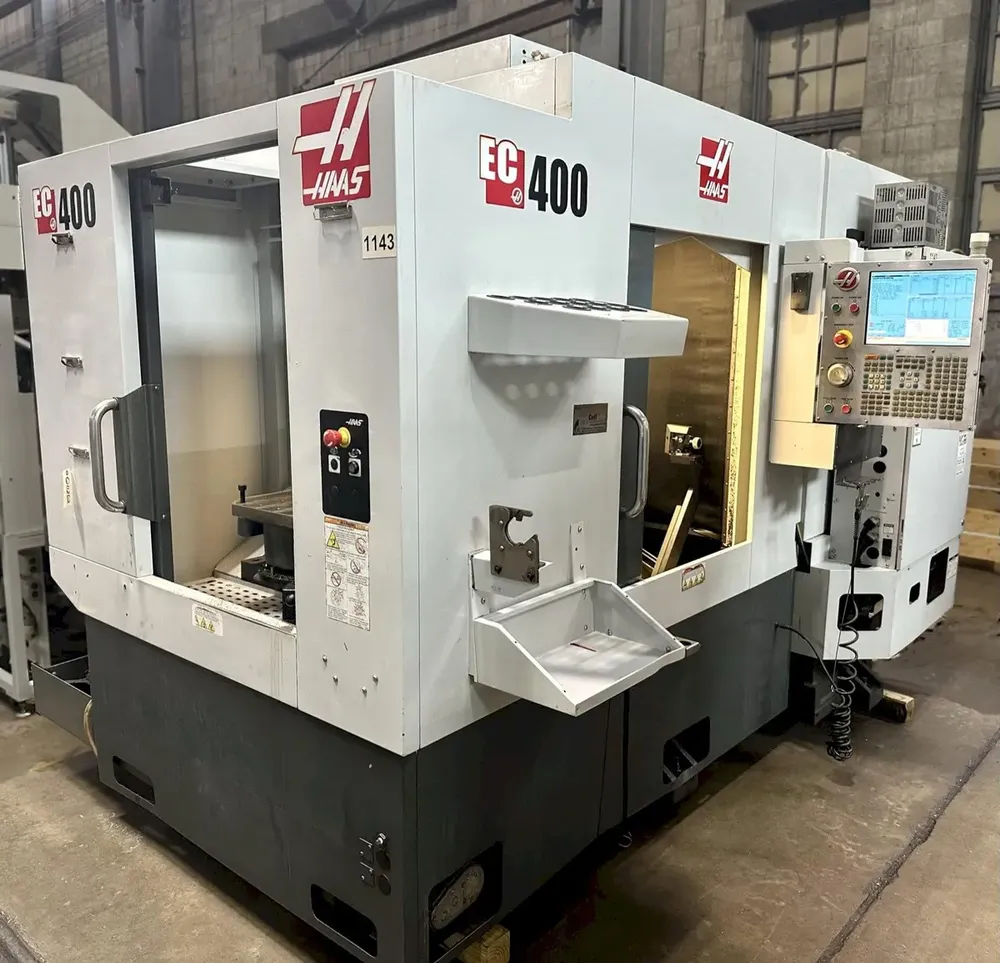

Haas EC-400 4 Axis

X-Axis Travel: 20"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Feed Rate: 500 in/min.
Rapid Traverse Rate: 1,000 in/min.
4 Axis
2 Pallets
Pallet Size: 15.75" x 15.75"
Max Pallet Load Capacity: 1,000 lb
Max Distance Spindle Nose to Pallet Center: 23.9"
Min Distance Spindle Nose to Pallet Center: 3.9"
Haas CNC Control
WIPS-R
Renishaw Probe Receiver
Haas Touch Setter
EPFDM
RJH-C
Rigid Tapping
Coolant Through Spindle
80 Gallon Coolant System
Spindle Speed: 8,100 RPM
Spindle Power: 20 hp
Spindle Taper: CAT 40
24 Position Automatic Tool Changer
Side-Mount Tool Changer
Dimensions: 140" x 97" x 102"
Weight: 22,000 LBS
