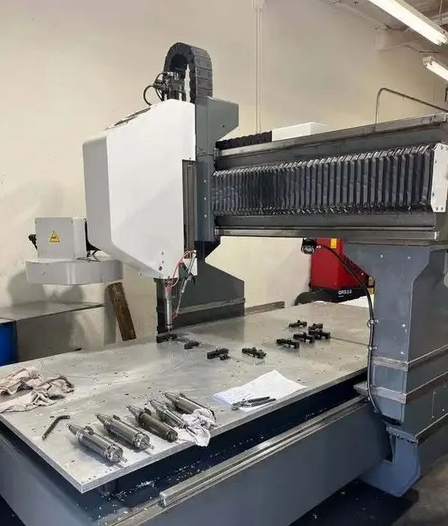

Haas GR-510 CNC CONTROL

X Axis Travel 121 in
Y Axis Travel 61 in
Z Axis Travel 11 in
Spindle Nose to Table (max) 13.5 in
Spindle Nose to Table (min) 2.5 in
Control CNC (Haas Quick Code)
Max Spindle Speed 10000 RPM
Max Spindle Torque 48 ft-lbf @ 1500 RPM
Spindle Power 15 hp
Spindle Drive System Direct Speed, Belt Drive
Spindle Taper CT 40
Max Cutting Feedrate 800 ipm
Rapid Feedrate X 800 ipm
Rapid Feedrate Y 2100 ipm
Rapid Feedrate Z 1100 ipm
Automatic Tool Changer Capacity 10
Max Tool Diameter (full) 3.5 in
Max Tool Weight 12 lb
Table Length 122 in
Table Width 53 in
Max Weight on Table 6000 lb
Between Columns 62 in
Coolant Capacity 95 gal
Air Required 4 scfm @ 100 psi
Air Pressure Min 80 psi
Input Voltage Low 220 VAC (3 Phase)
Full Load Amps Low 40 A
Input Voltage High 440 VAC (3 Phase)
Full Load Amps High 20 A
Machine Dimensions 206 in × 111 in × 108 in
Machine Weight 19400 lb
