Haas Haas 2-Axis CNC Control with 15" Color LCD Monitor 2400 rpm ST-40 2 Axis

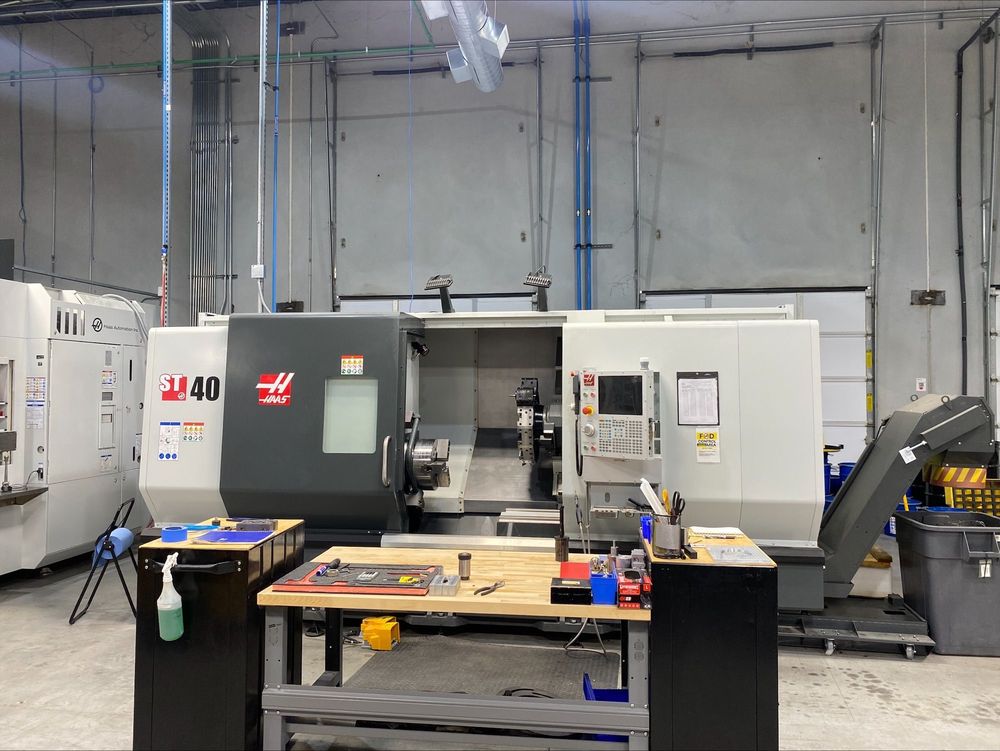

Haas ST-40
2021


Capacity: Swing 35.5 "
Swing Over Cross Slide 25.5 "
Maximum Machining Diameter 25.5 "
Distance Between Centers 44 "

Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 2400 rpm
Spindle Bore 4.62 "
Main Motor 40 hp
Spindle Nose A2-8

Turret: Number Of Positions 12
X-Axis Travel 20 "
Z-Axis Travel 44 "

Tailstock: Quill Diameter - "
Taper 5 MT
Body Travel 42 "

Chuck: Diameter 15 "
Hole Thru 4 "
Number of Jaws 3

Equipped With:
Haas 2-Axis CNC Control with 15" Color LCD Monitor
Remote Jog Handle with LCD Display, Rigid Tapping, HaasConnect, Early Power
Failure Detection Module, Ethernet, WIFI, 1GB Program Memory

Options: High-Pressure Coolant System (300 psi)
Automatic Tool Presetter (manual and auto)
Belt-type Chip Conveyor
High-Intensity Lighting
Programmable Servo Tailstock
Wireless Intuitive Probing System for Lathes
