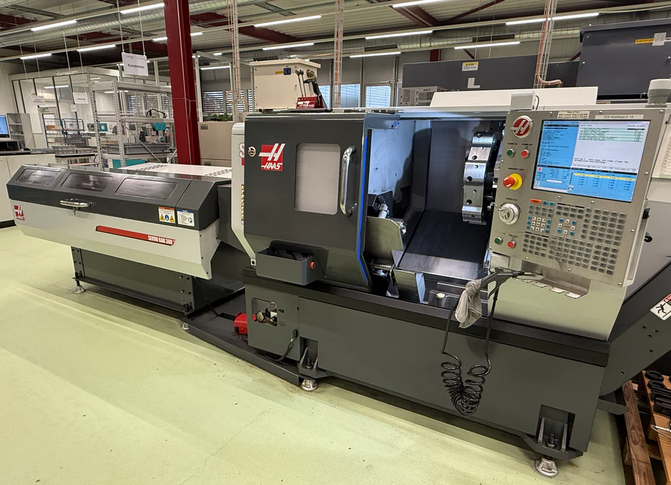

Haas HAAS 6000 rpm (stepless) ST-10 Y 3 Axis

Z-axis travel: 406 mm
X-axis travel: 200 mm
Y-axis travel: 51 mm
Rapid traverse X: 12 m/min
Rapid traverse Y: 12 m/min
Rapid traverse Z: 30.5 m/min
Control: HAAS
Centre height: 419 mm
Distance between centres: 355.6 mm
Bar passage: 46 mm
Spindle hole: 58.7 mm
Spindle speed: up to 6000 rpm (stepless)
Spindle motor: 11.2 kW
Spindle nose: A2-5
Number of axes: 3
Number of turning spindles: 1
Number of turrets: 1
Number of turret positions: 12
Voltage: 50 Hz 3x 360–480 V
Machine weight: approx. 3600 kg
Machine length: 3210 mm
Machine width: 1780 mm
Machine height: 2060 mm
Time under power: 7688 h
Operating time: 3222 h
Working time: 2173 h

Accessories / Equipment
3-jaw chuck
Lamp
Coolant system 114 l
Bar feeder SERVO BAR 300
Chip conveyor
Set of steel holders
Set of toolholders
