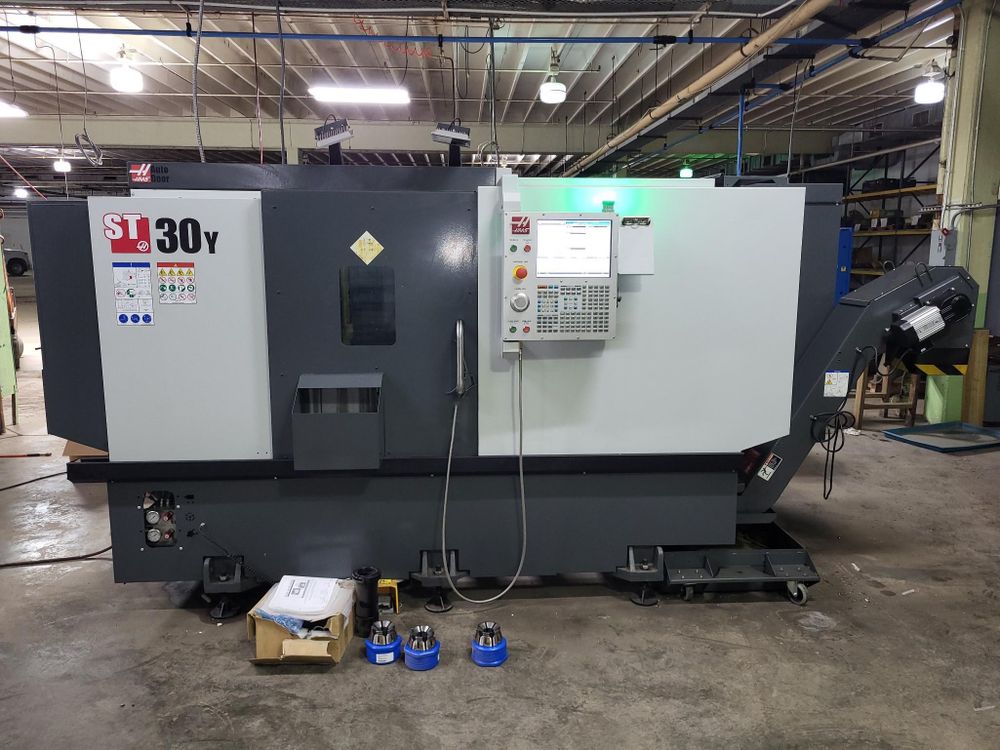

Haas Haas CNC 3,400 RPM ST-30Y 3 Axis

X-Axis Travel 9.40 in
Y-Axis Travel ±2.0 in
Z-Axis Travel 32.50 in
Max Part Swing 21.0 in
Max Cutting Diameter (with BMT65 turret) 13.75 in
Max Cutting Length 32.5 in
Bar Capacity 3.00 in
Between Centers 32.5 in
Rapids X-Axis 472 IPM
Rapids Y-Axis 472 IPM
Rapids Z-Axis 945 IPM
Control Haas CNC
Chuck Royal Quick-Grip Accu-Length CNC Collet Chuck
Collet Type QG-80
Collet Chuck Weight 35 lbs
Max Bar Capacity 3.28 in
Max Slug Capacity 4.00 in
Overall Length (A) 4.95 in
Nose Diameter (B) 5.68 in
Nose Length (C) 0.87 in
Body Diameter (D) 7.45 in
Flange Diameter (E) 7.45 in
Max Drawbar Force 11,240 lbs
Max Clamping Force 25,850 lbs
Max Chuck RPM 5,000
Main Spindle Spindle Nose A2-6
Main Spindle Max Rating 30.0 HP
Main Spindle Max Speed 3,400 RPM
Main Spindle Max Torque 300 ft-lbf @ 500 RPM
Main Spindle Max Torque with Gearbox 1,000 ft-lbf @ 150 RPM
Main Spindle Bore 3.50 in
Main Spindle C-Axis Max Rating 5.0 HP
Main Spindle C-Axis Max Speed 60 RPM
Main Spindle C-Axis Positioning Accuracy ±0.01°
Main Spindle C-Axis Brake Diameter 13.9 in
Main Spindle C-Axis Brake Holding Torque 250 ft-lbf
Sub-Spindle Chuck Size 6.5 in
Sub-Spindle Spindle Nose A2-5
Sub-Spindle Max Speed 4,100 RPM
Sub-Spindle Max Sync Speed 3,400 RPM
Sub-Spindle Chuck Throat Ø1.81 in × 1.60 in deep
Sub-Spindle Drawbar Adapter Bore Ø1.18 in × 3.09 in deep
Sub-Spindle Drawbar Bore (Non-Through) Ø1.03 in × 4.91 in deep
Sub-Spindle Spindle Bore 2.31 in
Sub-Spindle Integrated Brake Torque 17 ft-lbf
Sub-Spindle Spindle Orientation Accuracy ±0.02°
Sub-Spindle Rapids (B-Axis) 400 IPM
Turret Number of Tools 12 stations
Boring Bar Rear Clearance 4.00 in
Live Tooling Max Speed 4,000 RPM
Live Tooling Type BMT65
Spindle Drive System Direct speed, belt drive
Electrical Input Voltage 220 VAC 3-Phase Low
Electrical Full Load Amps 70 A
Electrical Input Voltage 440 VAC 3-Phase High
Electrical Full Load Amps 35 A
Approximate Machine Weight 11,500 lbs
