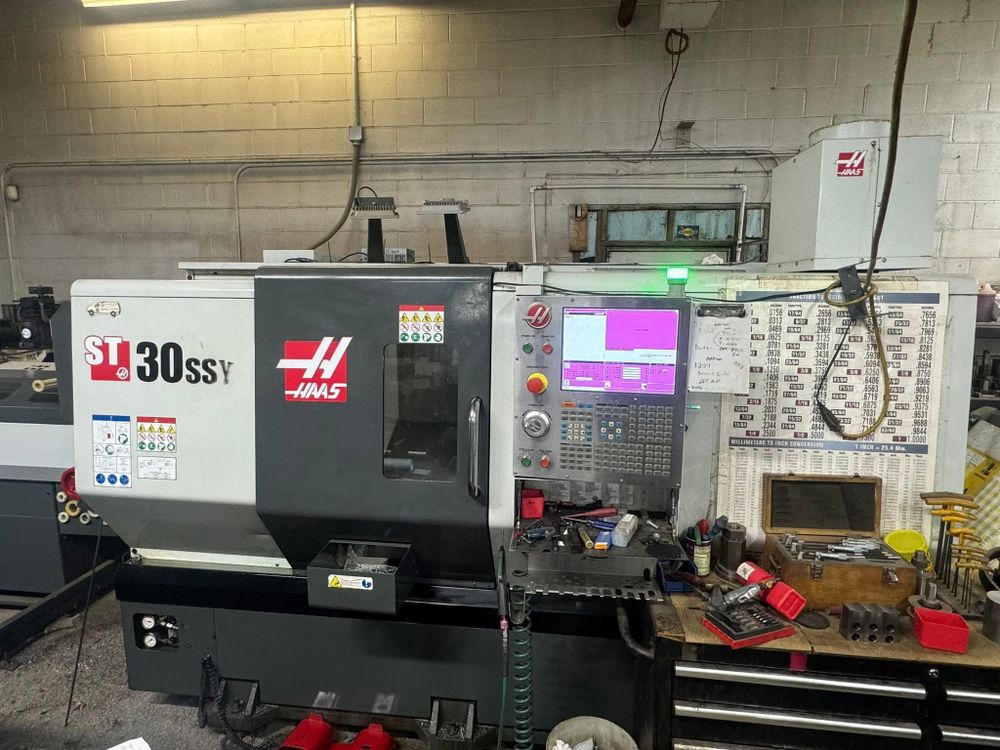

Haas Haas CNC 4,500 rpm ST-30SSY 4 Axis

X-axis travel: 12.5 in
Z-axis travel: 23 in
Y-axis travel: ±2.00 in
C-axis enabled
Control: Haas CNC
15 in color LCD monitor
USB port
Rigid tapping
Spindle orientation
Automatic tool presetter
Swing over bed: 31.75 in
Swing over cross slide: 20.75 in
Maximum machining diameter: 16 in
Distance between centers: 26 in
Spindle speed: 4,500 rpm
Spindle bore: 3.5 in
Spindle motor power: 30 hp
Spindle nose: A2-6
Chuck size: 10 in
Chuck hole through: 3 in
Number of chuck jaws: 3
Turret stations: 24
Hybrid turret: 12 VDI / 12 BOT
Live tooling
High-torque live tooling with C-axis
Live tool holders: 3
Programmable hydraulic tailstock
Parts catcher system
Belt-type chip conveyor
Haas servo bar feeder
Various bar feeder liners included
