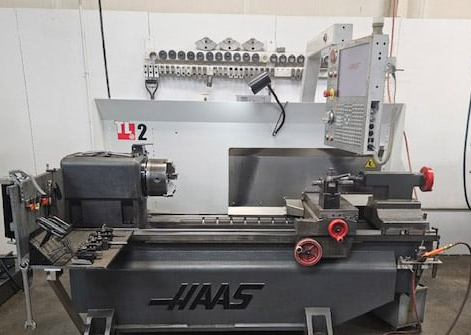

Haas Haas CNC Control 2000 rpm TL-2 2 Axis

X-axis travel 8″
Z-axis travel 48″
Rapids on X 75 IPM
Rapids on Z 150 IPM
Max thrust X 3096 lb
Max thrust Z 2340 lb
Control Haas CNC Control
Swing over front apron 16.0″
Swing over cross slide 11.1″
Max cutting diameter 16″
Max cutting length 48″
Between centers 48″
Spindle nose A2-6
Spindle motor power 12 hp
Spindle speed 2000 rpm
Spindle torque 150 ft-lb @ 150 rpm
Spindle bore / bar capacity 3.00″ / 3.0″
Chuck size 10″
Tool post Aloris tool post
Machine weight 4600 lb
Manual tailstock
Intuitive programming system
1MB program memory
USB port
Jacobs ball bearing chuck
Live center
