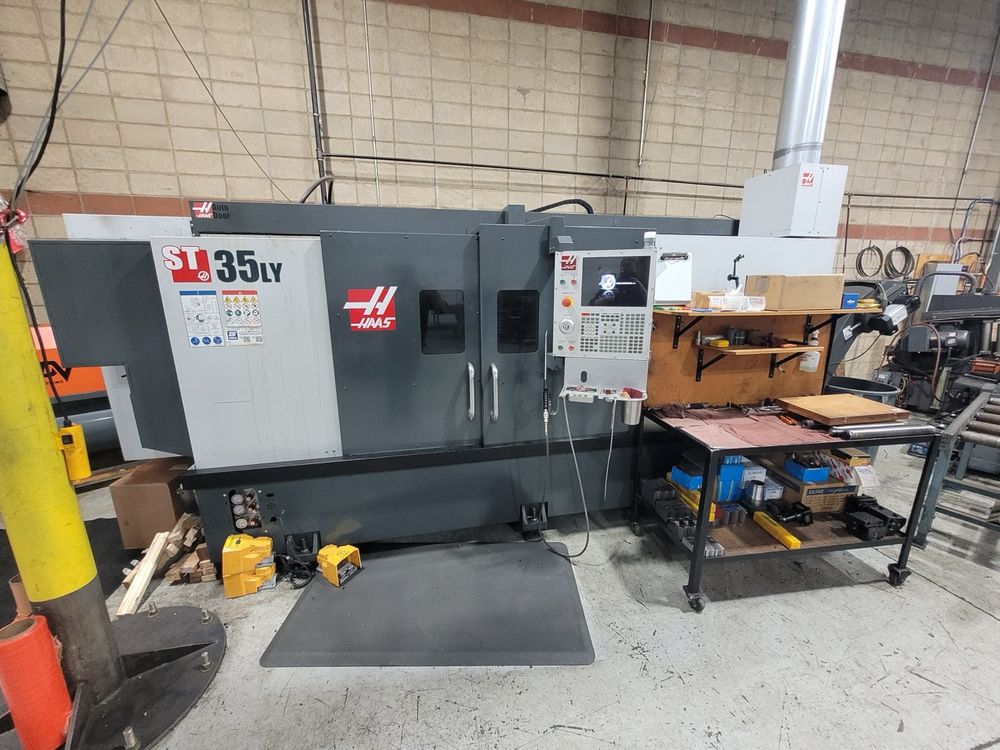

Haas Haas CNC Control 2400 rpm ST-35LY 4 Axis

X travel: 9.4"
Y travel: ±2.0"
Z travel: 62.5"
C axis
Control: Haas CNC Control
2-speed gearbox
Y axis
Automatic tool presetter
Programmable hydraulic tailstock
Automatic coolant refill system
Enclosure exhaust system
Coolant oil tank skimmer
Auto door
Tool load monitoring
Rigid tapping
Bar capacity: 4.0"
Swing over front apron: 20.5"
Swing over cross slide: 20.5"
Swing over tailstock: 20.5"
Maximum cutting diameter: 12"
Maximum cutting length: 62.5"
Spindle speed: 2400 rpm
Spindle motor power: 40 HP
Spindle nose: A2-8
Spindle bore: 4.62"
Live tooling speed: 6000 rpm
Rapid traverse X: 472 IPM
Rapid traverse Y: 472 IPM
Rapid traverse Z: 945 IPM
Chuck size: 12"
Tooling: BMT65
24-station turret

6,000 RPM live tooling speed upgrade
Belt-type chip conveyor
Half-index turret configuration
