Haas HAAS CNC CONTROL 3,400 RPM ST-25Y 2 Axis

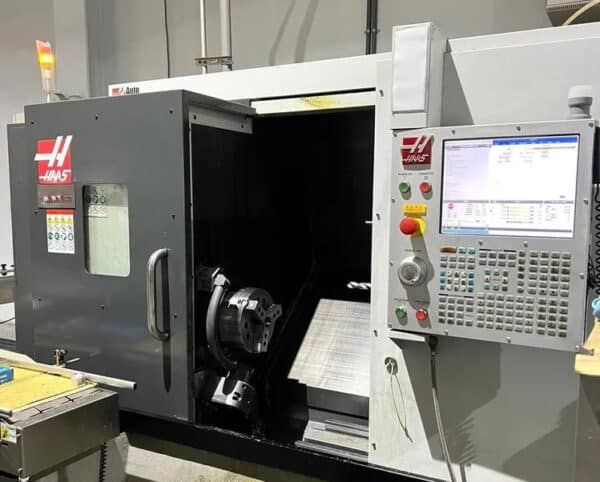

Haas ST-25Y
2020

Live Tooling
Sub Spindle
Swing Over Front Apron: 21.0″
Swing Over Cross Slide: 20.8″
Chuck Size: 10″ (3-Jaw)
Maximum Cutting Diameter: 11.75″
Maximum Cutting Length: 22.5″
Spindle Bore: 3.5″
Bar Capacity: 3.0″
X-Axis Travel: 8.4″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 22.5″
Main Spindle Nose: A2-6
Main Spindle HP: 30 HP
Main Spindle Speeds: 3,400 RPM
Turret Positions: 24 (upgrade)
Live Tooling: BMT65
Live Tooling Speeds: 6,000 RPM (upgrade)
Coolant Tank Capacity: 55 Gallons
Approximate Dimensions (L x W x H): 130″ x 64″ x 77″
Approximate Machine Weight: 12,300 lbs
Haas NextGen Control
Main Spindle C-Axis
Sub-Spindle: A2-5 Finishing Sub-Spindle with 5.3″ Hydraulic Chuck
10″ 3-Jaw Chuck
64 GB Onboard Memory
Early Power-Failure Detection Module
Ethernet Interface
Haas Connect
Rigid Tapping
Spindle Orientation
Touch Screen Interface
High Pressure Coolant System (300 psi)
Automatic Tool Presetter
Belt Type Chip Conveyor
High Intensity Lighting
Parts Catcher
Remote Jog Handle Touchscreen
Live Tool Holders
Static Tool Holders
8 Spare M Functions
Auxiliary Coolant Filter
Auto Door
CNC Cabinet Chiller
Chip Tray Filter
Auto Coolant Refill
Enclosure Exhaust System
Auto Jet Air Blast
6K Live Tooling Upgrade
24 Station Turret BMT65
User Defined Macros
Coolant Tank Oil Skimmers
Visual Programming System
WiFi Connection
WiFi Camera
WHIPS Intuitive Probing
