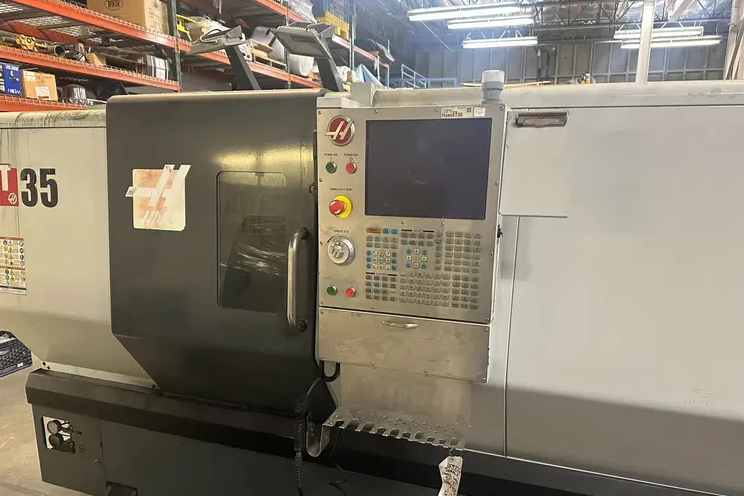

Haas Haas CNC Control 3200 rpm ST-35 3 Axis

X Axis Travel 9.40 in
Z Axis Travel 32.50 in
Rapid Traverse X 945 ipm
Rapid Traverse Z 945 ipm
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
CNC Control (Haas)
Haas CNC Control
Programmable Tailstock
Tool Setter
High Intensity Lighting
High Pressure Coolant 300 psi
Chip Conveyor
Remote Jog Handle
Rigid Tapping
Bar Capacity 4.00 in
Swing 31.75 in
Max Part Swing 21.0 in
Turning Diameter 21 in
Between Centers 32.5 in
Max Cutting Diameter (BOT Turret) 15.00 in
Max Cutting Diameter (BMT65 Turret) 13.75 in
Max Cutting Length 32.5 in
Max Spindle Speed 3200 rpm
Spindle Power 40 hp
Spindle Nose A2-8
Spindle Bore 4.62 in
Max Torque 425 ft-lbf @ 325 rpm
Max Torque with Optional Gearbox 1400 ft-lbf @ 150 rpm
Max Sync Speed 4100 rpm
Integrated Brake Torque 17 ft-lbf
Spindle Orientation Accuracy ±0.02°
Drive System Direct Speed Belt Drive
Chuck Size 15 in
15 in Upgraded Hydraulic 3-Jaw Chuck
12-Station BOT Turret
Number of Tools 12
OD and ID Tool Capability Any Combination
Boring Bar Rear Clearance 4.00 in
Tailstock
Dimensions 171 x 90 x 92 in
Weight 14300 lb
Coolant Capacity 55 gal
Air Requirement 4 scfm @ 100 psi
Minimum Air Pressure 80 psi
Input Voltage 220 VAC 3 Phase
Full Load Current 70 A
Input Voltage 440 VAC 3 Phase
Full Load Current 35 A
