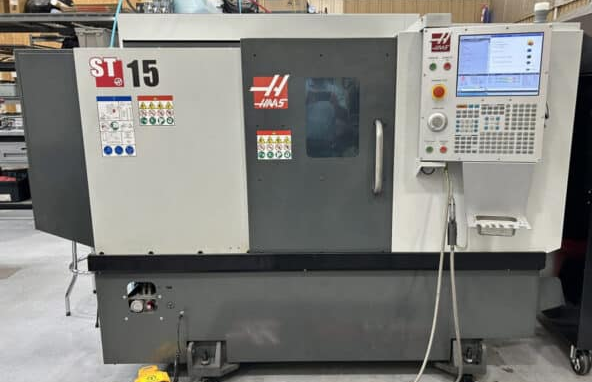

Haas Haas CNC Control 4000 rpm ST-15 Chucker 2 Axis

X axis travel: 7.9"
Z axis travel: 16.0"
Rapid traverse X: 1200 ipm
Rapid traverse Z: 1200 ipm
Control: Haas CNC Control
Tool presetter
Bar capacity: 2.50"
Max part swing: 16.5"
Max cutting diameter (with BOT turret): 12.00"
Max cutting length: 16.0"
Spindle nose: A2-6
Spindle motor power: 20.0 hp
Spindle max speed: 4000 rpm
Spindle max torque: 150.0 ft-lbf @ 500 rpm
Spindle bore: Ø3.50"
Turret: 12-station BOT
OD vs ID tools: Any combination
Boring bar rear clearance: 0.75"
Chuck size: 8.3"
3-jaw hydraulic chuck: 8″
No tailstock
Machine dimensions (shipping): 126" x 70" x 81"
Machine weight: 7900 lb
