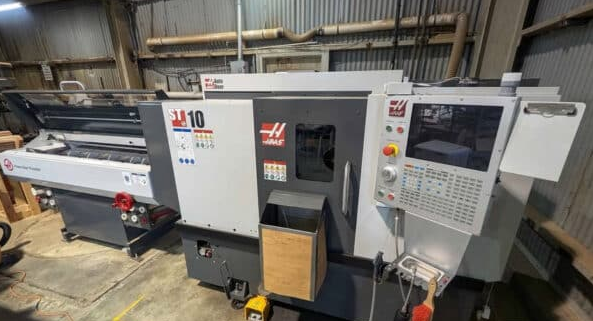

Haas Haas CNC control 6000 rpm ST-10 2 Axis

HAAS ST-10
Year 2020

Maximum swing diameter 16.5"
Swing over wedge 16.5"
Chuck size 6.5"
Maximum cutting diameter 14.0"
Maximum cutting length 16.0"
Bar capacity 1.75"
X-axis travel 7.9"
Z-axis travel 16.0"
X-axis rapid feedrate 1200 ipm
Z-axis rapid feedrate 1200 ipm
X-axis thrust 3300 lbf
Z-axis thrust 3300 lbf
Spindle nose A2-5
Spindle power rating 15.0 hp
Maximum spindle speed 6000 rpm
Spindle torque 75 ft-lbf @ 1300 rpm
Spindle bore diameter 2.31"
Number of turret stations 12
Turret type BOT
OD vs ID tool configuration any combination
Boring bar rear clearance 0.75"
Air requirement 4 scfm @ 100 psi
Machine weight 7900 lbs
Haas CNC control
Chip conveyor
Automatic front door
Barfeed
No tailstock
