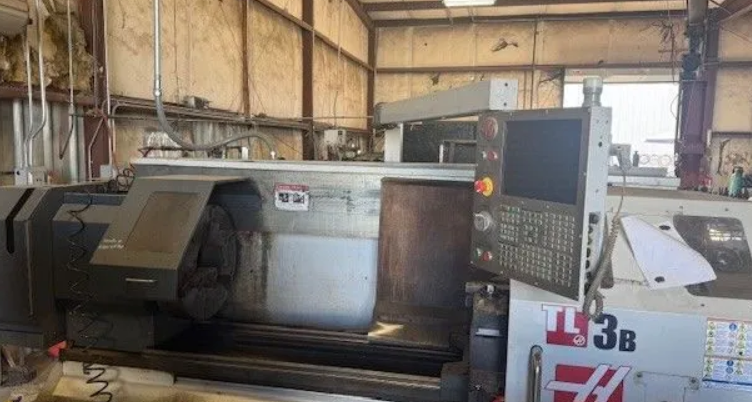

Haas Haas CNC Control 650 RPM TL-3B 2 Axis

X-Axis Travel: 16" (406 mm)
Z-Axis Travel: 60" (1524 mm)
Haas CNC Control
Coolant Through Tool Post
Dorian Tool Post
Quick Change Tool Post
CNC / Manual Operation
Manual Handwheels
Remote Jog Handle
Air Blow Gun
Work Light
Available Tooling Included
Machine Manuals
Swing Over Front Apron: 30" (762 mm)
Swing Over Cross Slide: 18.5" (470 mm)
Distance Between Centers: 60" (1524 mm)
Maximum Cutting Diameter: 30" (762 mm)
Maximum Cutting Length: 60" (1524 mm)
Spindle Speed: 650 RPM
Spindle Motor: 40 HP
Spindle Bore: 8.5" (216 mm)
Chuck Size: 25"
Rear Chuck Size: 25"
2 Front and Rear 4-Jaw Chucks
8.5" Big Bore Spindle
Steady Rest
Manually Adjustable Quill
High Flow Coolant Pump
Work Light
Machine Dimensions: 147" × 97" × 79"
Machine Weight: 9,700 lbs
