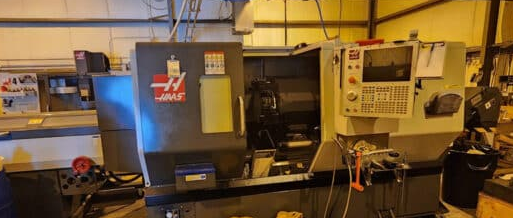

Haas Haas CNC Control Variable Speed ST-30Y 2 Axis

X Axis Travel: 9.4″
Y Axis Travel: ±2.0″
Z Axis Travel: 32.5″
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
C Axis: Yes
Control: Haas CNC Control
Automatic Tool Presetter
Chip Conveyor Belt Type
Auto Jet Air Blast
Parts Catcher
Programmable Hydraulic Tailstock
Haas Connect
Haas Barfeed
Bar Capacity: 3.00″
Max Part Swing: 20.5″
Max Cutting Diameter (with BMT65 turret): 12.00″
Max Cutting Length: 32.5″
Between Centers: 32.5″
Spindle Nose: A2-6
Spindle Power: 30.0 hp
Spindle Speed: 3400 rpm
Spindle Torque: 300 ft-lbf @ 500 rpm
Max Torque with Gearbox: 1000 ft-lbf @ 150 rpm
Spindle Bore: 3.50″
Live Tooling Speed: 4000 rpm
Tooling: BMT65
Chuck Size: 10.0″
Turret Stations: 12
Boring Bar Rear Clearance: 4.00″
Approx. Dimensions: 171″ x 90″ x 98″
Machine Weight: 14,300 lb
