Haas HAAS CNC Control With 15″ Color LCD Monitor 4,000 RPM ST-20Y 3 Axis

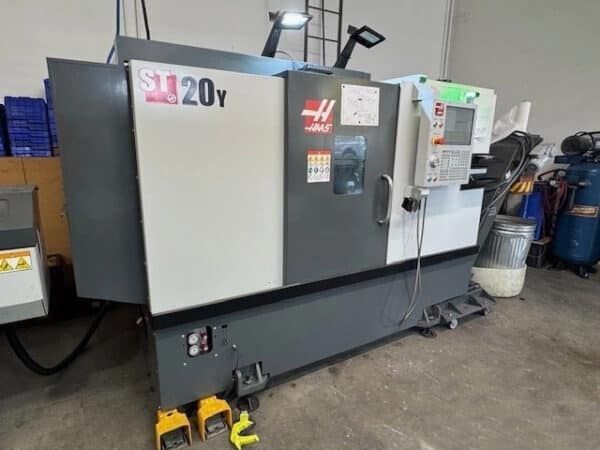

Haas ST-20Y
2023


Chuck Size: 8.3″
Max Part Swing: 21″
Max Cutting Diameter: 11.75″
Max Cutting Length (varies with workholding): 22.5″
Bar Capacity: 2.50″
X Axis Travel: 8.4″
Y Axis Travel: 2″Z Axis Travel: 22.5″
Rapid Feedrate on X & Y: 472 IPM
Rapid Feedrate on Z: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.50″
Max Rating: 20 HP
Spindle Speed: 4,000 RPM
C Axis Live Tooling Speed: 6,000 RPM
SPINDLE C AXIS Rating: 5 HP
Turret: 12 Stations
Coolant Capacity: 55 Gallons
Domestic Pallet: 143 in x 90 in x 92 in
Weight: 10,480 Lbs.

Equipped With:
HAAS CNC Control With 15″ Color LCD Monitor
High Torque C Axis Live Tool
HAAS Bar Feeder
Programmable Hydraulic Tailstock
Live & Standard Tooling
Automatic Tool Presetter
Chip Conveyor
Parts Catcher System
USB Port & Rigid Tapping
Coolant System Chip Strainer & Oil Skimmer
High Intensity Lighting
Enclosure Exhaust System
Media Display M- Code
Auto Door
Ethernet Interface
WIFI Connection For The Haas Control
Early Power Failure Detection Mode
