Haas Haas CNC Control with 15" Color LCD Touchscreen Monitor 6000 rpm CL-1 2 Axis

Ref : 2720832-3-MT
Condition : Used
Manufacturer : Haas
Controller : Haas CNC Control with 15" Color LCD Touchscreen Monitor
Spindle Speed : 6000 rpm
Model : CL-1
Nb Of Axis : 2 Axis
Year(s) : 2023
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

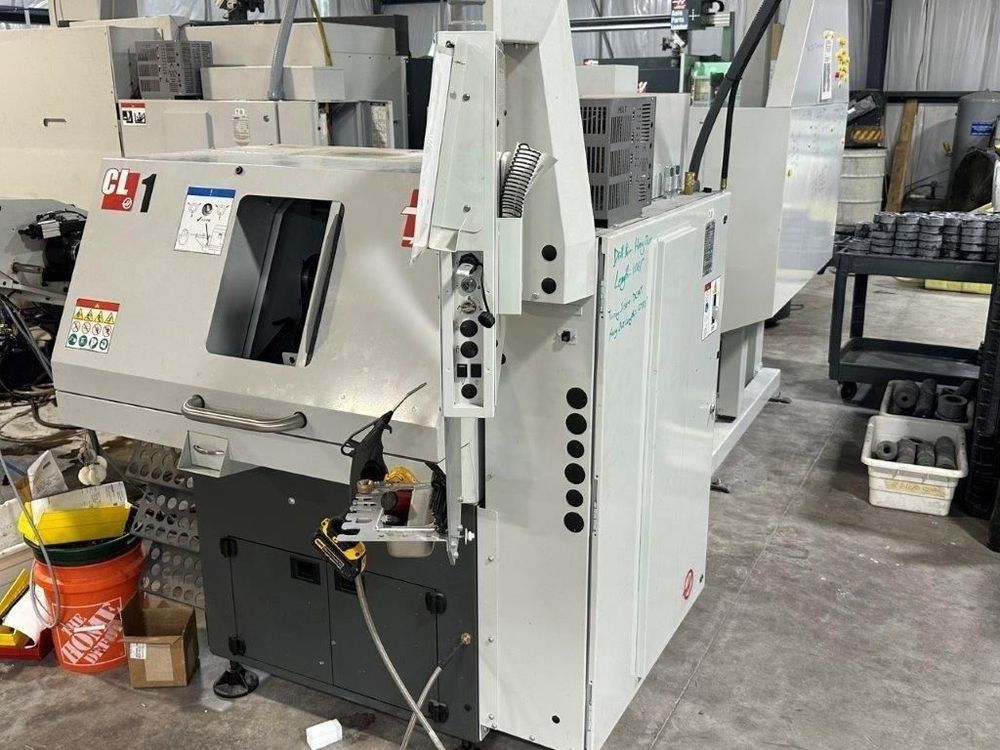

HAAS CL-1
2023

Swing over cross slide: 11"
Max machining diameter: 4.95"
X travel: 12"
Z travel: 8"
Spindle speed (max): 6000 rpm
Spindle speed (min): 0 rpm
Spindle bore: 1.25"
Main motor: 5 hp
Turret positions: 8
Chuck diameter: 4"
Chuck hole thru: 1"
Chuck type: 3-jaw manual scroll

Haas CNC Control with 15" Color LCD Touchscreen Monitor
1GB Program Memory
Advanced Tool Management
Early Power Failure Detection Module
Ethernet
Haas Connect
HaasDrop
Spindle Orientation
Touch Screen
WiFi
Window Blast Feature
Stainless Steel Way Covers
Media Display M-Code (M130)
8 Station Tool Turret
Gang Style Tooling Kit
13 Gallon Coolant Tank with 1/4 hp Pump
6' Barfeeder CL
Parts Catcher System
4" 3-Jaw Manual Scroll Chuck

Note: Machine ordered new in 2023;
customer switched to Swiss-style lathe.
Approx. 150 hours of runtime. Like new condition.
