Haas Haas CNC Control with 15″ LCD Monitor 1400 RPM ST-40LB 2 Axis

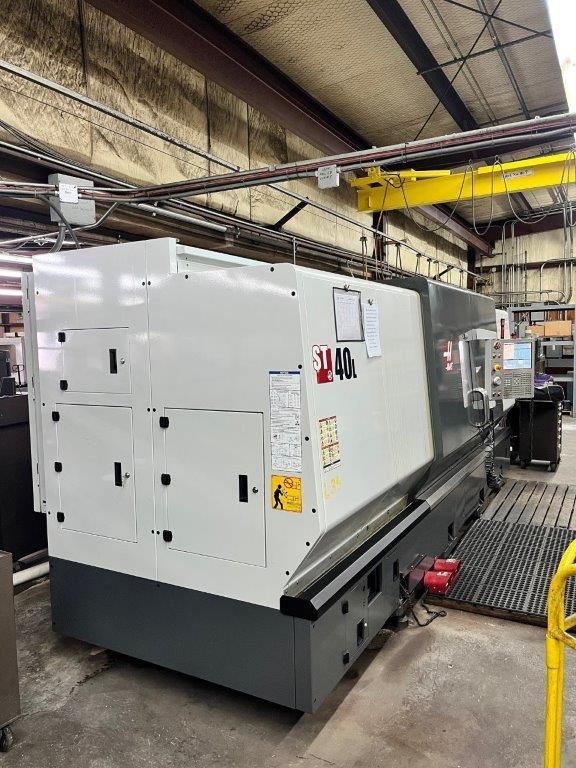

Haas ST-40LB
Year 2012

CAPACITY
Swing Over Bed: 34.5″
Swing Over Cross Slide: 25.5″
Maximum Machining Diameter: 25.5″
Distance Between Centers: 80″

SPINDLE
Spindle Speed: 0 to 1,400 RPM
Spindle Bore: 7″
Spindle Nose: A2-11
Main Motor: 55 HP (Extra Performance Option)
Torque: 2,100 ft-lb
Gearbox: 2-Speed

TURRET
Number of Positions: 12
X-Axis Travel: 17″
Z-Axis Travel: 80″
Body Travel: 18″

CHUCK
Diameter: 18″
Hole Through: 6.5″
Type: 3-Jaw Hydraulic Chuck

EQUIPPED WITH (subject to buyer verification)
Haas CNC Control with 15″ LCD Monitor
USB Port
Memory Lock Keyswitch
Color Remote Jog Handle
Rigid Tapping
Programmable Servo-Driven Tailstock
Big Bore Spindle Option
Steady Rest Provision with Manual Z-Axis Positioning
Steady Rest with Mounting Platform and Hydraulic Control
12 HP Z-Axis Servo Motor (Maximum Thrust: 7,847 lbs)
Belt-Type Chip Conveyor
