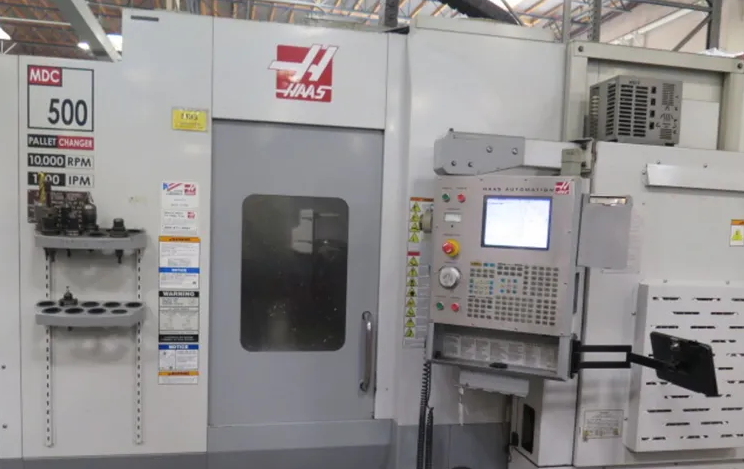

Haas MDC-500 3 Axis

HAAS MDC-500
2006

X-axis travel: 20″
Y-axis travel: 14″
Z-axis travel: 20″
Rapid traverse rate: 1000 in/min
Cutting feed rate: 710 in/min
Pallet changer: 180° dual pallet
Pallet size: 20.0″ x 12.75″
Pallet change time: 8 seconds
Max table weight: 700 lbs
Spindle taper: CAT 40
Spindle speed range: 0 – 7500 RPM
Spindle power: 20 HP
Max spindle torque: 70 ft-lb @ 1400 RPM
Tool changer capacity: 24 + 1
Max tool weight: 12 lbs
Max tool diameter: 3.6″
Max tool length: 16″
Tool change time: 2.1 – 4.7 seconds
Air required: 100 psi
Air consumption: 4 scfm
Power requirement: 480V / 66FLA / 3-Phase
Machine dimensions: 130″ x 102″ x 110″
Machine weight: 16,000 lbs
Includes chip conveyor
Includes coolant tank
Includes coolant system
