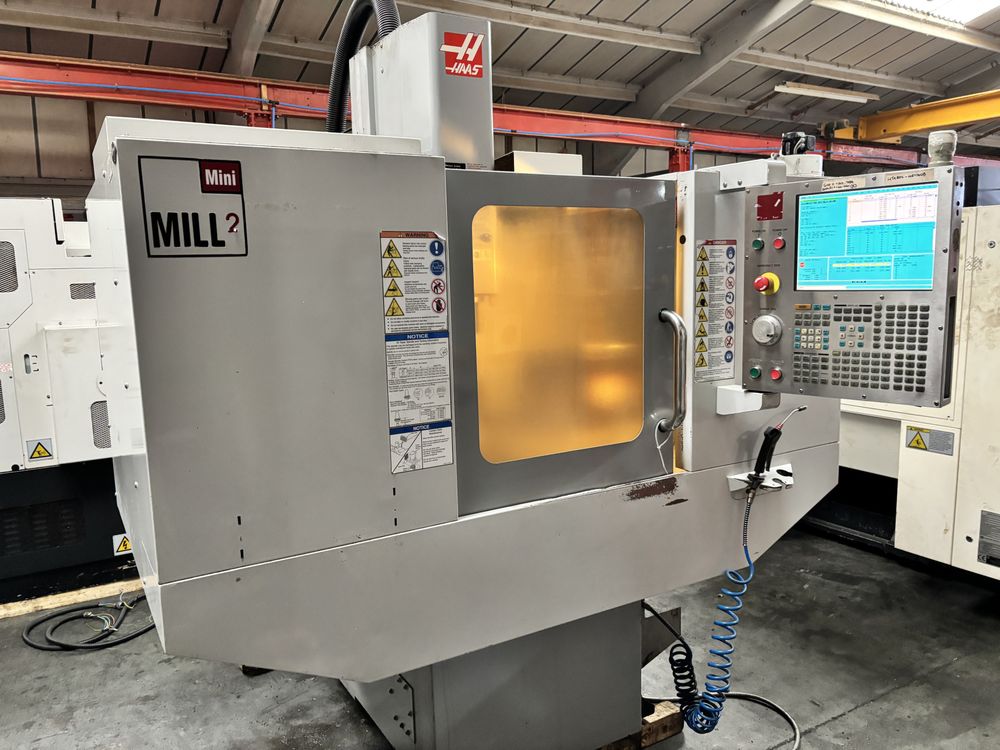

Haas Mini Mill 2 4 Axis

HAAS Mini Mill 2
2010

4 axis
4th axis interface
Coolant
Interlocked guards
Low volt light
Tailstock
USB port
Control HAAS
Cutting speed 12.7 m/min
Machine dimensions 2007 x 2210 x 2794 mm
Machine weight 1814 kg
Maximum tool diameter 89 mm
Maximum tool weight 5.4 kg
Min - max height under spindle 102 - 457 mm
Rapid feedrates 15.2 m/min
Spindle motor power 7.5 Hp
Spindle speed 6000 rpm
T-slots 3 x 16 mm
Table size 1016 x 356 mm
Tool change capacity 20 station
Tool change time (chip to chip) 5 seconds
Tool size BT40
Traverses XYZ 508 x 406 x 356 mm
