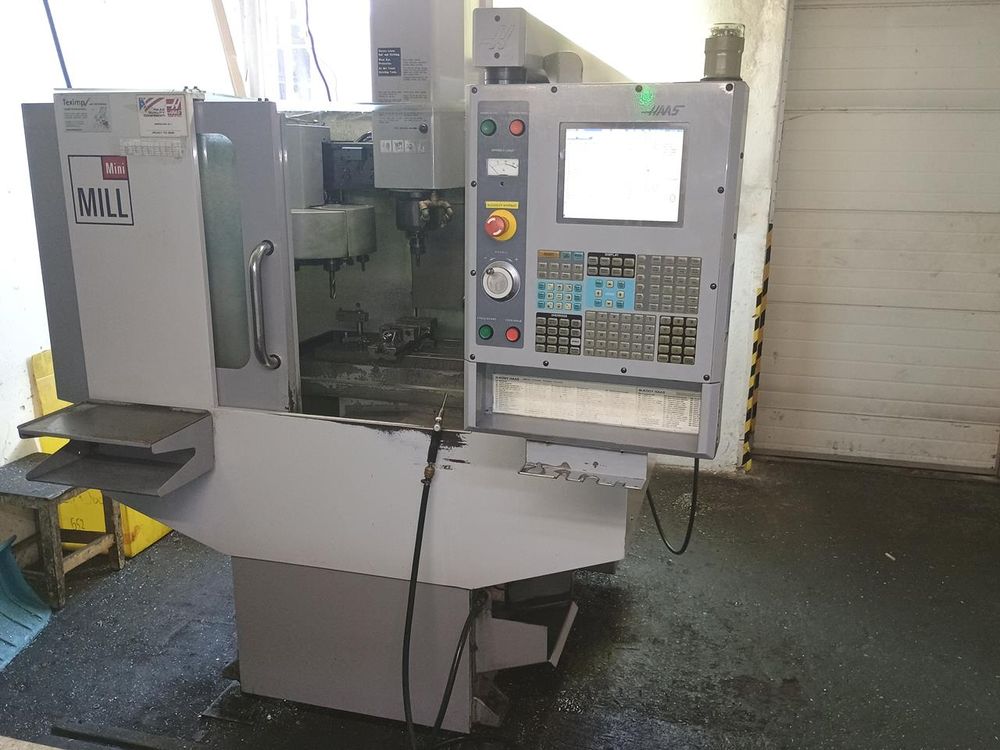

Haas MINIMILL HE 3 Axis

X-axis travel: 406 mm
Y-axis travel: 326 mm
Z-axis travel: 381 mm
Control: HAAS
Table size: 914 × 305 mm
Maximum table load: 227 kg
Spindle speed: 6,000 RPM
Spindle motor power: 7.5 kW
Spindle taper: ISO 40
Tool capacity: 10
Operating hours: 23,434 h
Machine dimensions: 2,119 × 2,077 × 2,565 mm
Machine weight: 2,018 kg
2024: Spindle bearings remeasured
2023: Y-axis thrust bearing replaced
2022: Spindle runout measured
2018: Z-axis spindle feed bearing replaced
2018: Motor coupling replaced
