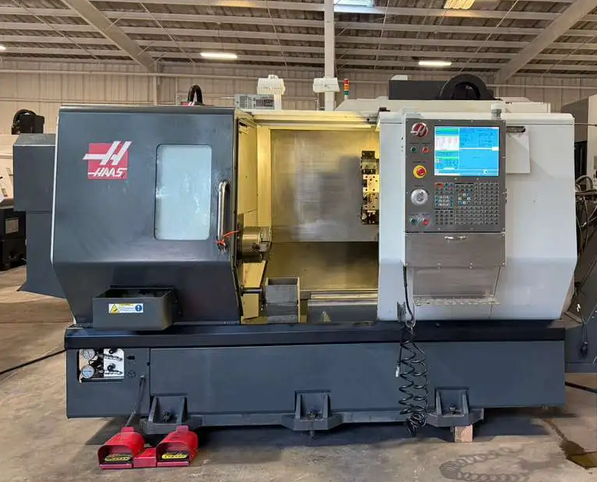

Haas ST-20 5 Axis

X-Axis Travel: 8.4 in
Z-Axis Travel: 22.5 in
5 Axis
Control: HAAS CNC
Bar Capacity: 2 in
Swing: 21 in
Maximum Turning Diameter: 15 in
Maximum Turning Length: 13 in
Machining Length: 22.5 in
Spindle Speed: 4000 rpm
Spindle Motor Power: 20 HP
Spindle Bore: 2.5 in
Spindle Nose: A2-6
Chuck Size: 8 in
Turret Stations: 12
Tailstock
Rigid Tapping
Coolant Tank with Pump
Programmable Hydraulic Tailstock
Belt-Type Chip Conveyor
Foot Switches
3 Boring Tool Holders Mounted on Turret
Machine Dimensions: 142.5 × 90 × 92 in
Machine Weight: 8820 lb
