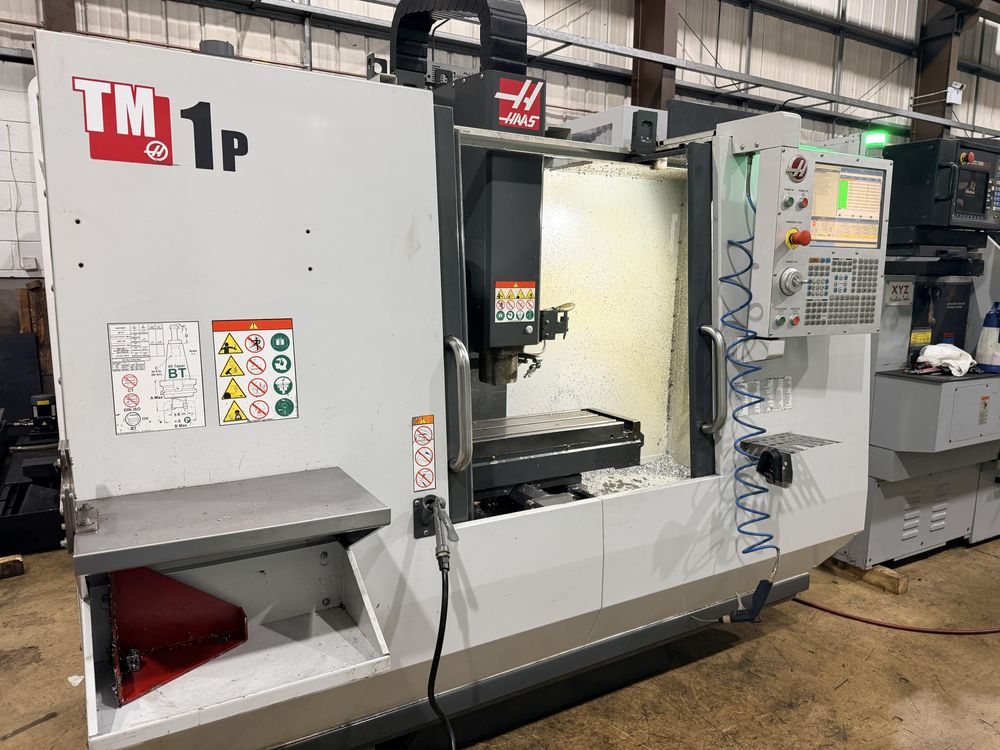

Haas TM-1P 3 Axis
Ref :
2766423-3-GO
Condition :
Used
Manufacturer :
Haas
Model :
TM-1P
Nb Of Axis :
3 Axis
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 762 mm
Y-axis travel 305 mm
Z-axis travel 406 mm
Rapid traverse 10.2 m/min
CNC control HAAS
Coolant system
Interlocked guards
Low voltage light
USB port
Spindle speed 6000 rpm
Spindle motor power 5.6 kW
Spindle taper BT40
Tool change capacity 10 stations
Maximum tool diameter 89 mm
Maximum tool weight 5.4 kg
Table size 1213 x 267 mm
T-slots 3
Maximum workpiece weight 454 kg
Minimum spindle to table distance 102 mm
Maximum spindle to table distance 508 mm
Machine length 2845 mm
Machine width 1956 mm
Machine height 2565 mm
Machine weight 1500 kg
