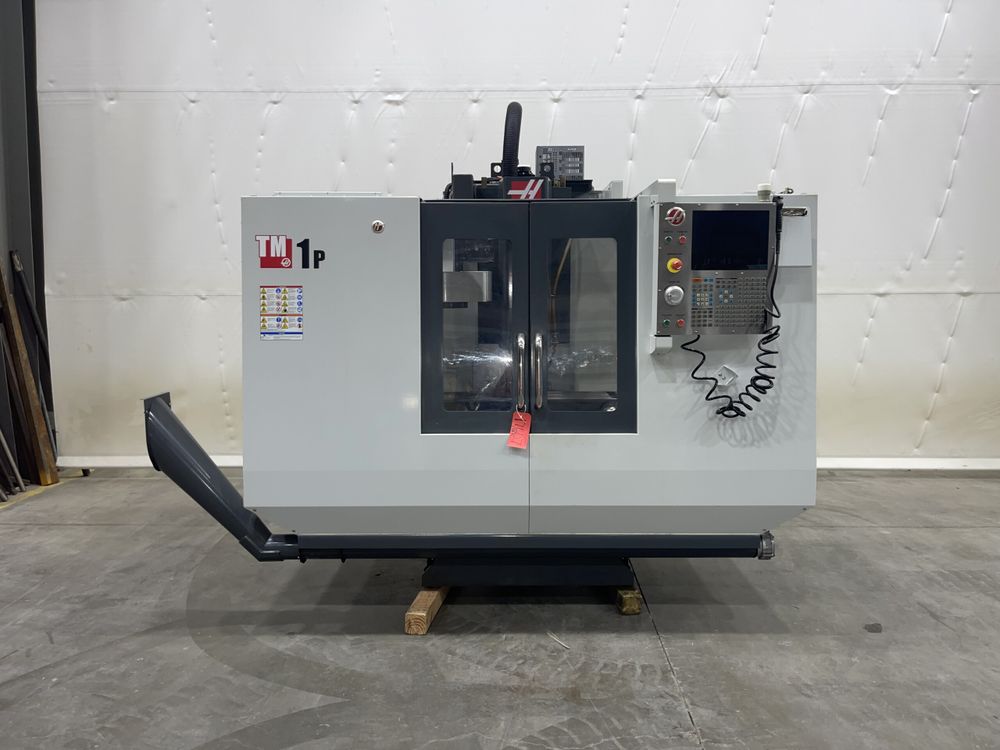

Haas TM-1P CNC MILL 3 Axis

X Axis Travel: 30.00 in
Y Axis Travel: 16.00 in
Z Axis Travel: 16.00 in
Rapid Traverse X,Y,Z: 200 ipm
Max Cutting Feedrate: 200 ipm
Spindle Speed Max: 4000 rpm
Spindle Power: 7.5 hp (5.6 kW)
Spindle Torque: 33 ft-lbf @ 1200 rpm (45 Nm)
Spindle Drive System: Direct speed, belt drive
Spindle Taper: CT or BT40
Tool Changer Capacity: 10 pocket
Distance Spindle Nose to Table: 4.0 – 20.0 in
Table Working Surface Length: 47.8 in
Table Width: 10.5 in
T-slot Width: 0.626 – 0.630 in
T-slot Center Distance: 4.00 in
Number of Standard T-slots: 3
Max Table Load: 350 lb
Air Requirement: 4 scfm @ 100 psi
Minimum Air Pressure: 80 psi
Input Voltage 1 Phase: 220 VAC
Full Load Amps 1 Phase: 40 A
Input Voltage 3 Phase Low: 220 VAC
Full Load Amps 3 Phase Low: 25 A
Input Voltage 3 Phase High: 440 VAC
Full Load Amps 3 Phase High: 13 A
Shipping Dimensions: 112 x 80 x 100 in
Weight: 4440 lb
Chip Auger
Coolant Pump
Intelligent Programming System (IPS)
Work Light
