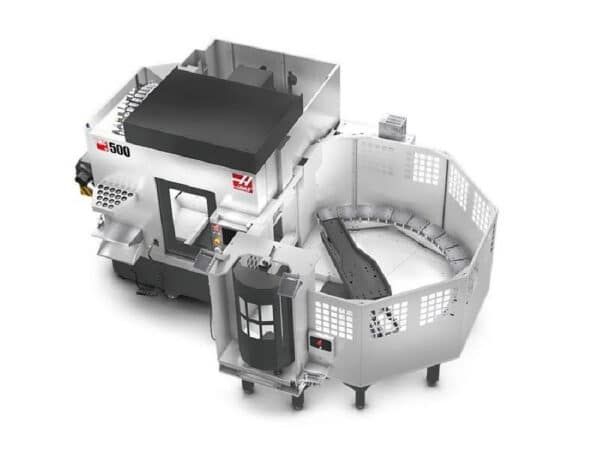

Haas UMC-500PP (20 Station) 5 Axis

X-axis travel: 24″
Y-axis travel: 16″
Z-axis travel: 16″
B-axis travel: ±120° (up to 179°/sec, 1854 ft-lb torque)
C-axis travel: 360° (same speed and torque)

Spindle speed: 15,000 RPM
Spindle power: 30 HP
Tool changer: 70+1 side-mount automatic tool changer
Pallet pool capacity: 20 storage pallets + 1 machining station
Pallet dimensions: 7.9″ × 7.9″ (200 × 200 mm)
Pallet thickness: 1″ (25.4 mm)
Maximum work envelope per pallet: 8″ diameter × 16.5″ tall (203 × 420 mm)
Maximum pallet payload: 200 lb (90 kg)

Features/Equipment
Haas CNC Control
Wireless Intuitive Probing System (WIPS)
Programmable coolant nozzle
Chip conveyor
Rigid tapping
Tool center point control
Dynamic work offsets
Power-failure detection
USB interface
High-speed machining capability
