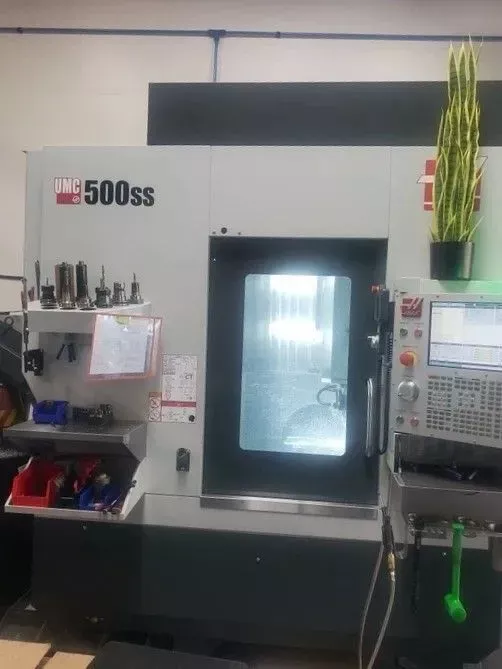

Haas UMC-500SS 5 Axis

HAAS UMC-500SS
2022


Main Spindle Horse Power: 30 HP
Main Spindle Speed: 12,000 RPM
Main Spindle Taper: 40
Spindle Nose to Table: 5.9" ~ 24.6"
Table Size: 24.8" x 19.6"
Number of Tables / Pallets: 1
Weight on Table: 660 lbs
Integrated NC Rotary Table Size: 15.7"
X Axis Travel: 25.59"
Y Axis Travel: 20.4"
Z Axis Travel: 18.7"
A Axis Travel: -5° to +110°
B Axis Travel: 360°
C Axis Travel Table Indexing: 360°
Rapid Traverse Rate X: 1654 IPM
Rapid Traverse Rate Y: 1654 IPM
Rapid Traverse Rate Z: 1654 IPM
Cutting Feed Rate: 650 IPM
Automatic Tool Changer: 30
Tool Diameter: 3.14" ~ 5.11"
Tool Length: 11.8"
Tool Weight: 13.2 lbs
Machine Weight: 11,462 lbs
Control: CNC
Memory: 1 GB
Rigid Tapping
Haas Connect Remote Monitoring
Early Power Failure Detection Module
Power Surge Protection
WiFi Connection for Haas Control
Ethernet Interface
Remote Jog Handle with Touch Screen Display
Wireless Intuitive Probing System
Haas Drop & Safe Run
Rotary Scales
Belt Type Upright Chip Conveyor
Chip Tray Filter Kit
