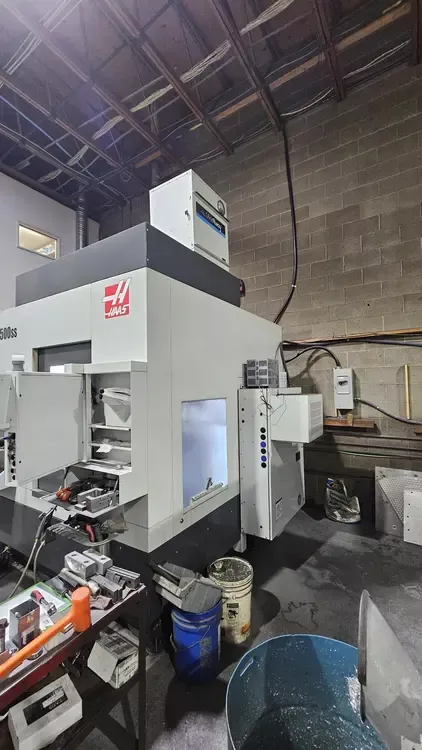

Haas UMC-500SS 5 Axis

HAAS UMC-500SS
Year: 2021

Number Of Tables / Pallets 1
Weight On Table 500 lb
Integrated NC Rotary Table Size 15.7"
Main Spindle Horse Power 30 hp
Spindle Nose To Table 420"
Main Spindle Speeds 12,000 RPM
Main Spindle Taper 40
X - Axis Travel 24"
Y - Axis Travel 16"
Z - Axis Travel 16"
B - Axis Travel 120 DEG. ~ -34 DEG.
C - Axis Travel Table Indexing 360 DEGREES
Rapid Traverse Rate - X 900 in/min.
Rapid Traverse Rate - Y 900 in/min.
Rapid Traverse Rate - Z 900 in/min.
Cutting Feed Rate 650 in/min.
Automatic Tool Changer 50
Tool Diameter 25.5"
Tool Length 12"
Tool Weight 12 lb
Control CNC (HAAS CNC CONTROL)
Weight 0.00

1GB MEMORY
RIGID TAPPING
300 PSI THROU SPINDLE COOLANT
HAAS CONNECT REMOTE MONITORING
EARLY POWER FAILURE DETECTION MODULE
POWER SURGE PROTECTION
WIFI CONNECT FOR THE HAAS CONTROL
ETHERNET INTERFACE
REMOTE JOG HANDLE WITH TOUCH SCREEN DISPLAY
WIRELESS INTUITIVE PROBING SYSTEM (PART PROBE & TOOL LENGTH MEASUREMENT PROBE)
HAAS DROP & SAFE RUN
PROGRAMMABALE COOLANT NOZZE;
BELT TYPE UPRIGHT CHIP CONVEYOR WITH CHIP TRAY FILTER KIT
CHIP STRAINER
MIST AWAY MIST EXTRACTOR
