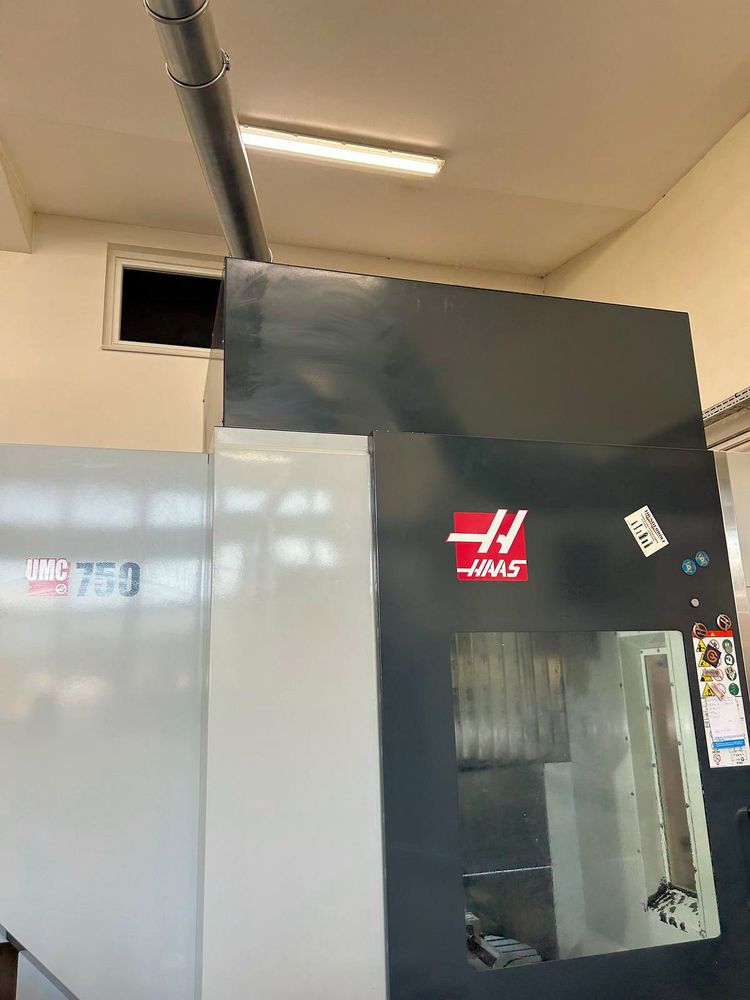

Haas UMC-750 5 Axis

HAAS UMC-750
Year: 2017

5 axis
B axis travel: +110° / -35°
C axis travel: 360°
Coolant
Interlocked guards
Low voltage light
Manuals
Remote hand wheel
Spindle probe
Swarf conveyor
Tool setter
USB port
WIPS system (Wireless Intuitive Probing System)
Control: HAAS
Machine dimensions: 3987 x 2387 x 2565 mm
Machine weight: 8681 kg
Max. cutting feedrate: 16.5 m/min
Max. workpiece weight: 300 kg
Min–max height under spindle: 102 – 610 mm
Rapid feedrate: 30.5 m/min
Spindle motor power: 22.4 kW
Spindle speed: 12000 rpm
Table size: 500 x 500 mm
Tool changer capacity: 40 stations
Tool change time (chip to chip): 3.6 seconds
Tool taper: BT40
Travel X: 762 mm
Travel Y: 508 mm
Travel Z: 508 mm
