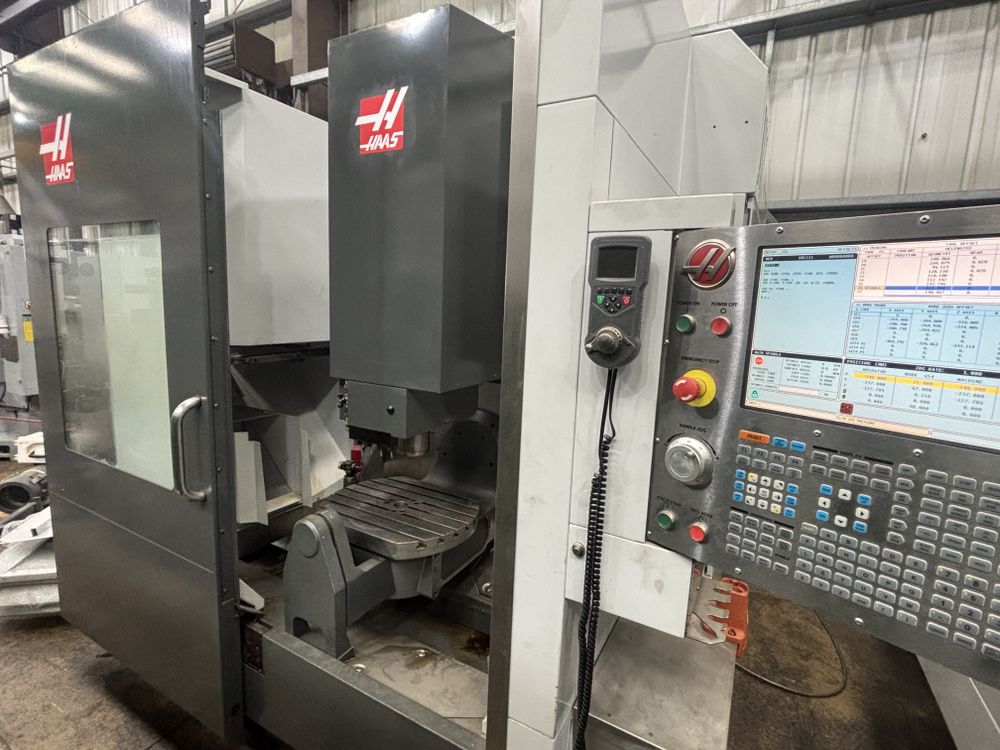

Haas UMC-750 5 Axis

X-Axis Travel: 762 mm
Y-Axis Travel: 508 mm
Z-Axis Travel: 508 mm
B-Axis Travel: +110° / -35°
C-Axis: 360°

Control: HAAS
Spindle Speed: 8100 rpm
Spindle Motor Power: 22.4 kW
Table Size: 500 x 500 mm
Maximum Cutting Feedrate: 16.5 m/min
Rapid Feedrates: 30.5 m/min
Tool Change Capacity: 40 Station
Tool Change Time (Chip to Chip): 3.6 seconds
Tool Size: BT40
Maximum Workpiece Weight: 300 kg
Min-Max Height Under Spindle: 102 – 610 mm
Machine Dimensions: 3987 x 2387 x 2565 mm
Machine Weight: 8681 kg
Equipped with 5-Axis Simultaneous Machining
Equipped with Coolant
Equipped with High Speed Machining Function
Equipped with Interlocked Guards
Equipped with Low Volt Light
Equipped with Manuals
Equipped with Remote Hand Wheel
Equipped with Swarf Conveyor
Equipped with Through Spindle Coolant
Equipped with Tool Setter
Equipped with USB Port
