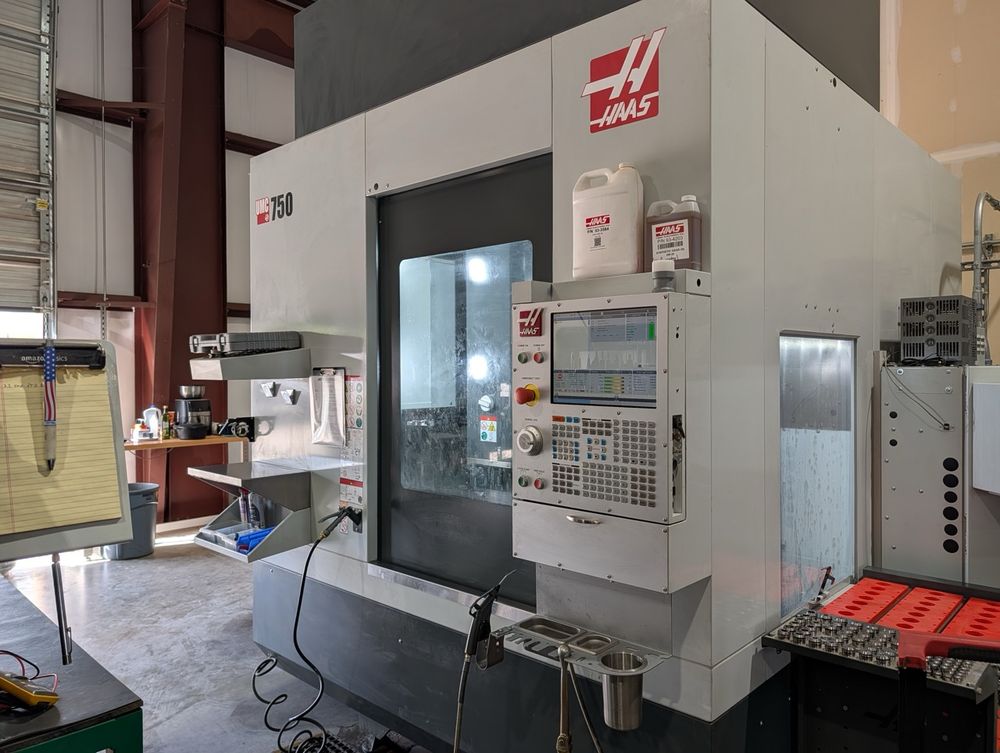

Haas UMC-750 5 Axis

X-axis travel: 30"
Y-axis travel: 20"
Z-axis travel: 20"
B-axis travel: 120º to -35º
B-axis max speed: 50º/sec
C-axis travel: 360º
C-axis max speed: 50º/sec
Control touch screen
Wireless intuitive probing system
Programmable coolant nozzle
High-speed machining
Rigid tapping
Dynamic work offsets and tool center point control
Ethernet interface
HaasConnect remote monitoring
HaasDrop
Second home position
Media display M-code M130
Large remote jog handle with touchscreen display
Rotary scales
Safe run
WiFi connection for Haas control
CNC control cabinet cooler
Early power-failure detection module
Max part swing: 27"
Spindle nose to platter: approx. 4" to 24"
Spindle max power: 30 HP
Spindle max speed: 15,000 RPM
Spindle taper: CAT 40
Max cutting feedrate: 650 ipm
Rapids X/Y/Z: 900 ipm
30+1 side-mount tool changer
Platter diameter: 19.7"
Max platter weight: 660 lbs
Max weight with pallet pool: 200 lbs
T-slot width: 0.626" to 0.630"
T-slot center distance: 2.48"
Shipping dimensions: approx. 168" x 93" x 110"
Approx. weight: 14,250 lbs
Chip tray filter kit
Chip conveyor
55-gallon coolant tank
Power surge protection
Top cover for UMC series
