Haas UMC-750SS 3 Axis

Ref : 2730425-3-GO
Condition : Used
Manufacturer : Haas
Model : UMC-750SS
Nb Of Axis : 3 Axis
Year(s) : 2017
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

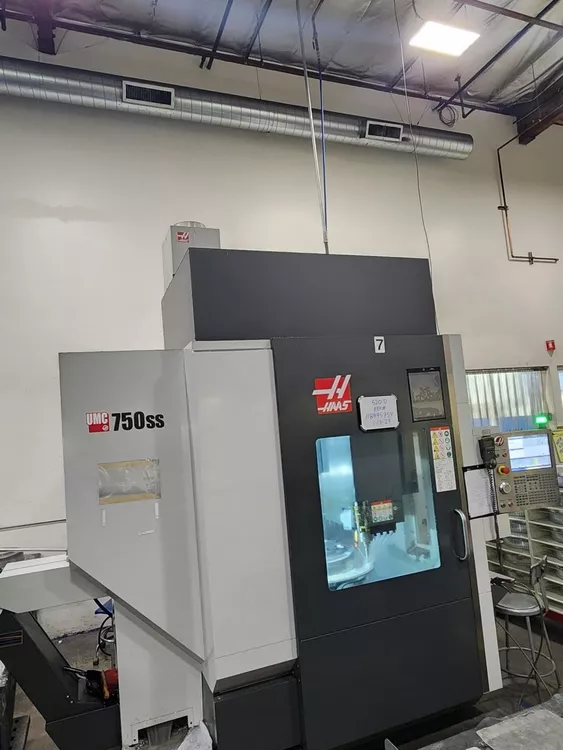

HAAS UMC-750SS
Year: 2017

X Travel: 30"
Y Travel: 20"
Z Travel: 20"
Spindle Speed: 15,000 RPM
Tool Capacity: 40
Table Width: 19"
Table Length: 24"
Main Spindle Motor: 30 HP
Spindle Taper: CAT 40
5-Axis Contouring: Yes
Coolant Pressure: 300 PSI
Part Probe: Yes
Tool Probe / Auto Tool Length Measurement: Yes
Control: CNC (HAAS CNC Control)
Rotary Table Diameter: 500 mm
Trunnion Type: 2-Axis Integrated High-Speed
Drive Type: Inline Direct-Drive
Tool Changer Type: 40+1 Side Mount
Rapid Traverse Rate: 1200 IPM
High-Speed Machining: Yes
Spindle Orientation: Yes
Macros: Yes
Coordinate Rotation & Scaling: Yes
Wireless Intuitive Probing System: Yes
Second Home Button: Yes
Color Remote Jog Handle: Yes
Power-Failure Detection Module: Yes
Expanded Memory: 1 GB
Monitor: 15" Color LCD
USB Port: Yes
Memory Lock Key Switch: Yes
Rigid Tapping: Yes
Flood Coolant Tank Capacity: 75 Gallons
Chip Conveyor Type: Belt-Type
Programmable Coolant Nozzle: Yes
Through-Spindle Coolant: 300 PSI
