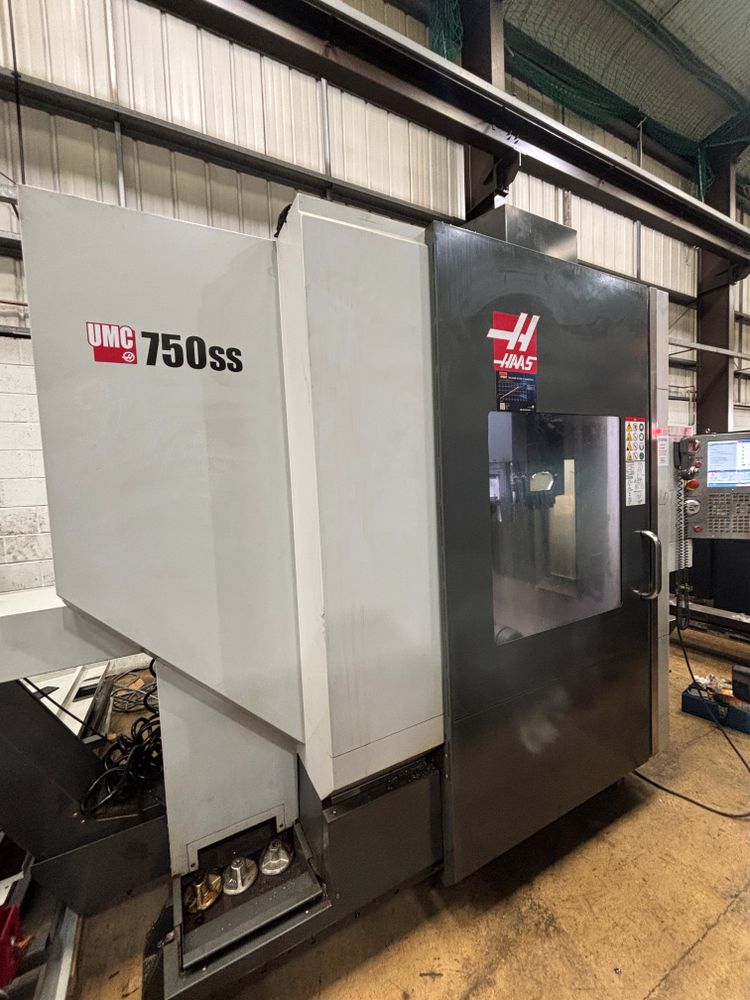

Haas UMC-750SS 3 Axis

Rapid feedrates 30.5 m/min
Traverses XYZ 762 x 508 x 508 mm
B axis travel 120° to -35°
C axis 0.001 degrees (360° full rotation)
Control HAAS
Coolant
High speed machining function
Interlocked guards
Low volt light
Manuals
Remote hand wheel
Spindle probe
Swarf conveyor
Through spindle coolant
Tool setter
USB port
WIPS system (Wireless Intuitive Probing System)
Spindle motor power 30 Hp
Spindle speed 15000 rpm
Table size 500 mm
T-slots 7 x 16 mm
Maximum cutting feedrate 16.6 m/min
Maximum tool diameter 64 mm
Maximum tool diameter with empty adjacent pocket 127 mm
Maximum tool length 305 mm
Maximum tool weight 5.4 kg
Maximum workpiece weight 300 kg
Min - Max height under spindle 102 ~ 610 mm
Tool change capacity 40 station
Tool change time (chip to chip) 2.4 seconds
Tool size DIN40 (convertible to BT40)
Memory 1 Gb
Machine dimensions 4115 x 2870 x 3048 mm
Machine weight 6463 kg
